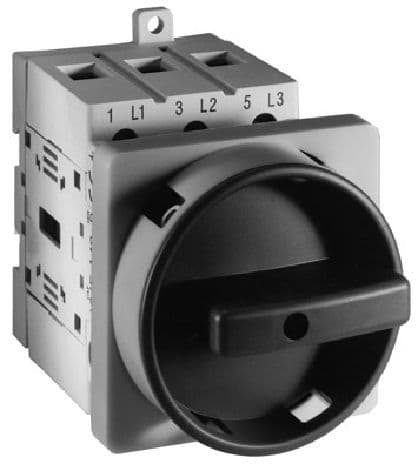

100 A 194E Load switch
Produktnummer: 194E-A100-1753-6A
Produktstatus:
inkl. mva.
194E Load switch, 100 A, 3 Poles, OFF-ON 90°, Open, Base/DIN Rail, Standard Terminals, With Type A Black/Grey ACTR, Open Switch Style, OFF-ON 90°
| Spesifikasjoner | |
|---|---|
| Mounting | Base / DIN Rail |
| Number Of Poles | 3 Poles |
| Type | OFF-ON 90° |
| Actuator | Supplied with a Type A Black/Grey Actuator |
| Size | 100 A |
| Enclosure Type | Open |
| Installation | Base / DIN Rail |
| Pole Configuration | 3 Poles |
| Configuration | OFF-ON 90° |
| Actuator Selection | Supplied with a Type A Black/Grey Actuator |
| Lengde | 7.5 |
| Høyde | 10.0 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 194-td002_-en-p.pdf Filtype: application/pdf |
