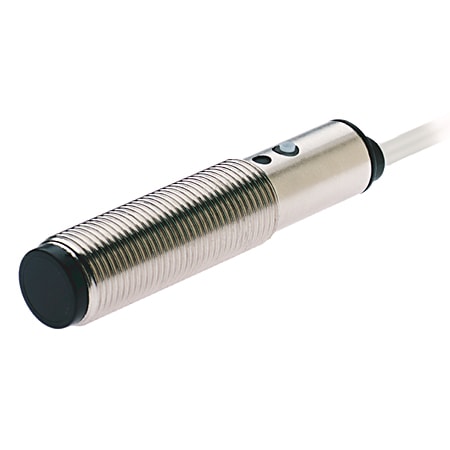

12 mm Clyindrical Sensor
Produktnummer: 42CF-D1LPA2-A2
Produktstatus:
inkl. mva.
12 mm Clyindrical Sensor, Standard Diffuse, None, Infrared, Teach Button, PNP, DC LO or DO Selectable, 2 m (6.5 ft) Cable, Metal, 1.25 ms, 3 mm Minimum Sensing Distance, 300 mm Sensing Distance
| Spesifikasjoner | |
|---|---|
| Sensing Mode | Standard Diffuse (Teachable) |
| Maximium Sensing Distance | 300mm (11.7in) |
| Light Source | Infrared LED |
| Operating Voltage | 10-30V DC |
| Output Type | Source (PNP) |
| Connection Type | 2m (6.5ft) cable |
| Lengde | 0.8 |
| Høyde | 15.199 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cf-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (DXF/DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Dimension Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned |
