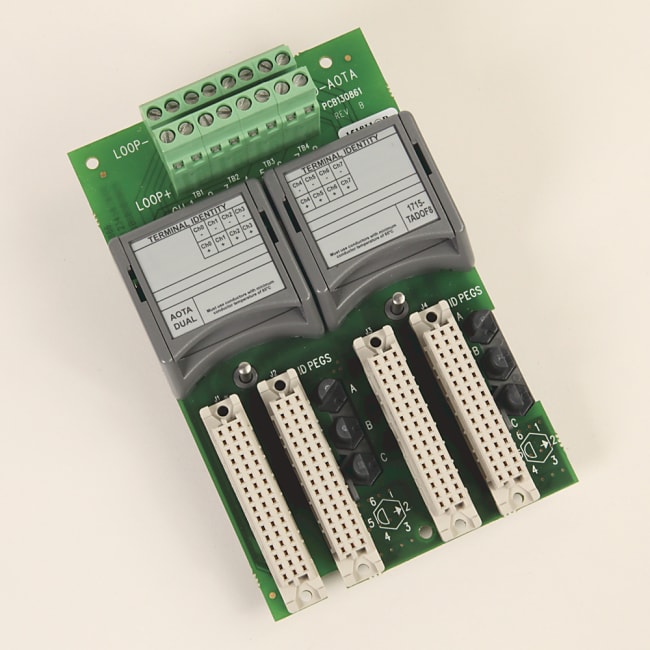

1715 8 Duplex A/O Termination Assembly
Produktnummer: 1715-TADOF8
Produktstatus:
inkl. mva.
Termination Assembly - analog output duplex
Termination Assembly, Redundant I/O, 8, Duplex, Analog Output, DIN Rail Mounted, IP20, Operating Temperature -25...70 1/4C (-13...158 1/4F)
Egenskaper for produkt/familie
- Provide secure communication between modules for fault tolerant operation
- Support short circuit and open circuit line fault detection
- Offer fail-safe design and operation
- Eight isolated output channels per module
- Offer 24V DC input
- Allow module removal and replacement online with no interruption of the signal inputs
- Offer 24V DC output
- Offer 4…20 mA input
- Require no additional hardware or programming software
- Offer flexible, modular construction for user-configurable I/O applications
- Allow dual redundant field power feed capabilities without requiring external diodes
- Provide duplex series output switches with overload protection for each channel
- Offer 4…20 mA output
- Built-in diagnostic testing
- Suitable for simplex and duplex connections and for fault tolerant applications
- Provide input voltage data for line monitoring and field fault detection
- Provide I/O redundancy for system requiring high availability
- Support as many as eight field devices
- Include two-terminal current regulating device
- Provide voltage and current monitoring on each channel with reverse current protection
- 16-channel connection capability
| Spesifikasjoner | |
|---|---|
| Type | Termination Assembly |
| Special Features | Standard |
| Application | Chassis Based |
| Mounting | DIN rail |
| Operating Temperature | -25...70 °C (-13...158 °F) |
| Enclosure | IP20 |
| Termination Assemblies | Termination Assembly - analog output duplex |
| Opprinnelsesland | MX |
| Tolltariffnummer | 85371098 |
| Lengde | 7.0 |
| Høyde | 19.5 |
| Livssyklus | Active |
