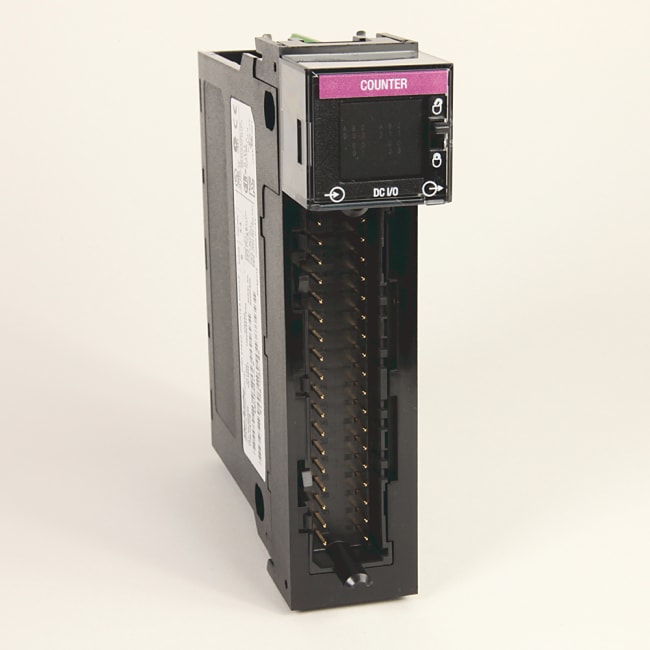

2 CH/4 OUT HIGH SPEED COUNTER (36 PIN)

Produktnummer: 1756-HSC
Produktstatus:


inkl. mva.

2 Channel / 4 Output High Speed Counter (36 Pin)

High Speed Counter Module, ControlLogix, 2 Input Channels, 4.5-5.5VDC or 10-31.2V DC, 4 Current Sourcing DC Outputs, 20mA@ 4.5-5.5VDCor 1.0A@10-31.2VDC
Spesifikasjoner
Product Type I/O Modules
Sub Brand ControlLogix
Type Counter Module
Special Features 1MHz Counter Interface, 250KHz Encoder Interface (x1 and x4), Two Outputs assignable to each Counter, 3 different frequency calculations
Mounting Chassis
Enclosure None (open-style)
Input Signal TTL Inputs: 4.5 - 5.5vdc, 24vdc Inputs: 10 - 26.4vdc
Output Signal 4.5-5.5VDC, 10-31.2VDC
Isolation 30 V continuous between input groups
Display Input, Output, Communication, and Operational Status, Module Health
Operating Temperature 0...60 °C (32...140 °F)
Removable Terminal Block 1756-TBCH or 1756-TBS6H
Specialty Modules (Please select number of Removable terminal Blocks as addded in the list.) 2 Channel / 4 Output High Speed Counter (36 Pin)
Opprinnelsesland US
Tolltariffnummer 85389099
Lengde 22.86
Høyde 5.08
Livssyklus Active
