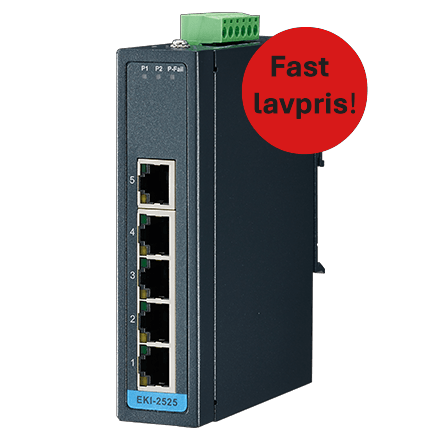

5-port Unmanaged Industrial Ethernet Switch

• Provides 5 Fast Ethernet ports with Auto MDI/MDI-X
• Supports 10/100 Mbps Auto-Negotiation
• Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
• Supports redundant 12 ~ 48 VDC power input and P-Fail relay
• 5-year warranty

General

Ethernet Port Count
5

Mounting
DIN, Panel

Power
12-48VDC

Technology
Ethernet

Temperature
-10 to 60C

Unmanaged
Yes

Certification

EMI
CE, FCC Class A

EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8

Safety
UL 60950-1

Environment

Temperature (Min. Operating)
-10°C (14°F)
Temperature (Max. Operating)
60°C (140°F)

Ethernet Communication

RJ-45 Port Number
5

RJ-45 Transmission Distance
100 m

RJ-45 Transmission Speed
10/100 Mbps

Mechanism

Mounting (DIN-rail)
Yes

Mounting (Wall)
Yes

Dimensions (W x H x D)
30 x 120 x 95 mm (1.18 x 4.72 x 3.74 in.)
Enclosure (Plastic)

IP Rating
IP30

Power

Power Connector Type
6-pin removable screw terminal

Power Consumption
2.88W

Power Input (DC)
12 ~ 48 VDC

Redundant Dual Inputs
Yes

Warranty

Warranty Period
5 years

Protection

Overload Current
Present

Reverse Polarity
Present
