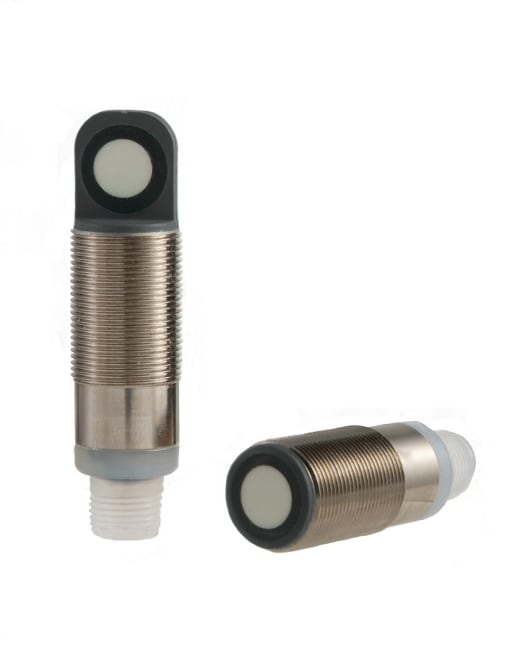

873M Ultrasonic Sensor
Produktnummer: 873M-D18RAI300-D4
Produktstatus:
inkl. mva.
Ultrasonic Sensor, 873M, Diffuse, Analog Current 10-30V, Remote Teach 18mm Threaded Right Angle Barrel, 300mm Sensing Range, DC Micro QD
Egenskaper for produkt/familie
- 80;889D-F4AC-5
- Nickel-plated brass housing
- Bright LEDs display output status
- M12 connector, 4-pin QD
- Applications include:
| Spesifikasjoner | |
|---|---|
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Sensing Direction | Right |
| Family Style | Bulletin 873M General Purpose Cylindrical 18mm |
| Output Configuration | Analog Current (4-20mA) |
| Termination Type | Micro QD (DC) |
| Sensing Range | 50mm to 300mm |
| Barrel Diameter | 18mm |
| Enclosure | Nickel Plated Brass, Right Angle |
| Connection | Micro QD (DC) |
| Sensing Distance | 50mm to 300mm |
| Size | 18mm |
| Model | Bulletin 873M General Purpose Cylindrical 18mm |
| Output | Analog Current (4-20mA) |
| Lengde | 5.69 |
| Høyde | 3.61 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 873m-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2D Dimensional Drawing (DWG/DXF) Filnavn: 873M-D18xxxx-04.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 873m_right_angle Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: 873M_PH.jpg Filtype: image/png |
Last ned |
