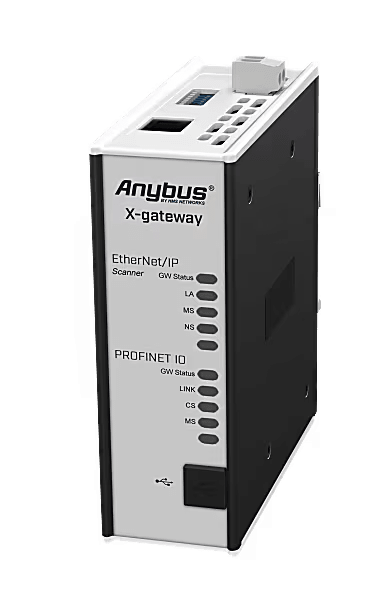

The Anybus X-gateway EtherNet/IP Master to PROFINET-IO Device enables you to connect any EtherNet/IP device or equipment to PROFINET-IO control systems. It can be used when there is no existing EtherNet/IP control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.

Features and benefits

Reach new markets
Target new markets using different protocols without needing to change your hardware or software, thereby decreasing your time to market and development costs.

No PLC card slot needed
The gateway does not use a card slot in the control system, leaving room for other equipment.

Slim hardware design
The gateway is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.

3-year warranty
The gateway is designed to be robust and long-lasting. A 3-year guarantee is provided.

Easy configuration – No programming required!
Quickly establish the connection between the two networks with the included Anybus Configuration Manager software. No programming skills are required for the setup process.

Increased PLC performance
The gateway allows for fast transfer of cyclic I/O data between the two networks, offloading your PLC from working with additional calculations.

Trusted partner
Anybus has a long history of working with all the major network organizations to ensure compliant, high-performing, and compatible products.

Life cycle management
HMS maintains every part of the gateway, including network updates, throughout the product’s lifecycle.

Support and Downloads

EtherNet/IP Features

EtherNet/IP Mode: Scanner / Master

EtherNet/IP No. Of Adapters: 64

PROFINET Features

PROFINET Mode: Slave

PROFINET Supported Functionality: Soft Real-Time (RT); Max 64 slots / 1 sub-slot; DCP support; Acyclic Data exchange

PROFINET Bandwidth: 10/100Mbit full/half duplex down to 1ms

PROFINET Configuration File: GSDML available

Technical Specification

Net Width (mm): 44 mm

Net Height (mm): 127 mm

Net Depth (mm): 114 mm

Net Weight (g): 400 g

Mounting: DIN-rail (EN 50022 standard)

Current Consumption Type Value at Vcc Nom (mA): 200mA @ 24V DC

Current Consumption Max value at Vcc nom (mA): 400mA @ 24V DC

Input Voltage (V): 24V DC (-20% to +20%)

Power Connector: 2-pin, 5.08 Phoenix plug connector

Reverse Polarity Protection: Yes

Short Circuit Protection: Yes

Isolation: TRUE

Operating Temperature °C Min: -25 °C

Operating Temperature °C Max: 65 °C

Storage Temperature °C Min: -40 °C

Storage Temperature °C Max: 85 °C

Housing Materials: Aluminum, Plastic

Packaging Material: Cardboard
