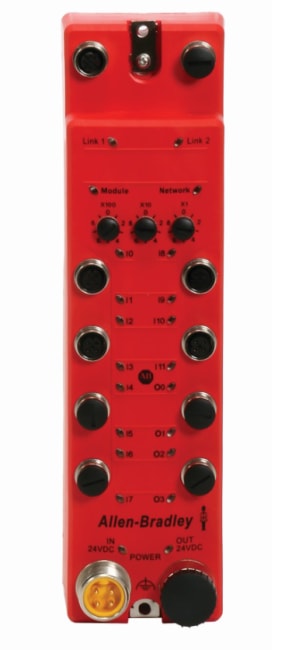

ArmorBlock Guard I/O Input/Output Module
inkl. mva.
EtherNet/IP Safety ArmorBlock Input Module, 12 Inputs, 4 Solid State Sourcing Outputs
Egenskaper for produkt/familie
- Mounts on the machine with an IP65-rated package for dust and wash-down protection
- Provides PLd-rated, single channel safety inputs and PLe-rated, dual channel, safety inputs; safety outputs rated up to PLe
- Provides rotary switches to set the IP address
- Includes dual Ethernet ports for Linear and Device Level Ring topologies
- Provides standardized M12 connectors to wire your field devices
- Used only with GuardLogix®, Compact GuardLogix, and Armor™ GuardLogix, configurable with a module-specific profile in Studio 5000 Logix Designer® software
- Available in bipolar and sourcing safety output configurations
Spesifikasjoner | |
---|---|
Communication | EtherNet/IP |
Network Connection | EtherNet/IP |
I/O Type | Input/Output Combo Module |
Number of Inputs and Outputs | 12 Sinking Inputs, 4 Solid State Sourcing Outputs |
Termination Type | DC Micro (M12) |
Rating | IP67 |
Application | Input Sink, Solid State Output Module |
Opprinnelsesland | US |
Tolltariffnummer | 85389099 |
Lengde | 13.081 |
Høyde | 10.16 |
Livssyklus | Active |
Datablad | ||
---|---|---|
Spec Sheet Filnavn: 1732-sg001_-en-e.pdf Filtype: application/pdf |
Last ned |
Nedlastinger | ||
---|---|---|
Installation Guide - (1) Filnavn: en-US Filtype: application/pdf |
Last ned | |
2D Dimension Drawing (DWG or DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
Installation Guide - (5) Filnavn: pt-BR Filtype: application/pdf |
Last ned | |
2D Dimension Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
Installation Guide - (3) Filnavn: fr-FR Filtype: application/pdf |
Last ned | |
Specification Sheet Filnavn: en-US Filtype: application/pdf |
Last ned | |
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
Installation Guide - (2) Filnavn: es-ES Filtype: application/pdf |
Last ned | |
Installation Guide Filnavn: de-DE Filtype: application/pdf |
Last ned | |
Installation Guide - (4) Filnavn: it-IT Filtype: application/pdf |
Last ned |
