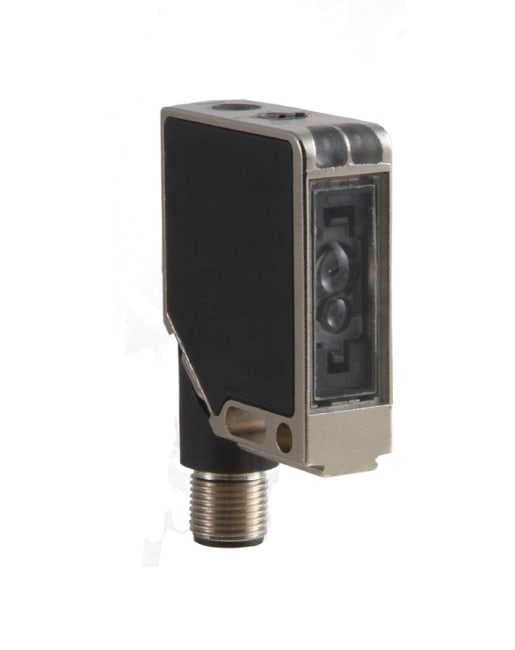

Color Registration Mark Sensor, 1 mm x 3 mm ( Vertical)

Produktnummer: 45CRM-4LHT1-D4
Produktstatus:


inkl. mva.

Color Registration Mark, 45CRM, Diffuse, RGB, Light Operate - Dark Operate, Dual IO-Link Push-Pull, Local <(>&<)> Remote Teach, 9-13mm Range, Standard Vertical Lens, 4-Pin M12 QD,

Egenskaper for produkt/familie

  • Provides adjustable-position DC Micro (M12) quick disconnect (QD) cordsets
  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Offers compact size (49 mm x 42 mm x 15 mm)
  • Includes 2 x PNP/NPN (push-pull) complementary outputs
  • Offers dynamic teach, static teach, or IO link configurable setup methods
  • Provides fast 40 μs response time
  • Incorporates embedded IO-Link communication protocol to help minimize downtime and increase productivity
  • 130;889D-F4AC-5
Spesifikasjoner
BulletinNo 45CRM Color Registration Mark
Nominal Sensing Distance 11 mm ± 2 mm (0.43 ± 0.079 in.)
Output Type 2 x NPN/PNP Complementary Outputs
IO-Link Enabled Yes
Output Mode Light or Dark Operation
Light Spot Orientation 1 mm x 3 mm ( Vertical)
Operating Voltage 10...30V DC (18...30V DC when operating in IO-Link mode)
Response Time 40us
Light Source 3 Visible LEDs (Red, Green, Blue)
Operating Temperature -20...60C (-4...140F)
Operating Environment IP67
Termination Type Micro QD (DC)
Connection Media DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m
Lengde 11.43
Høyde 2.54
Livssyklus Active
