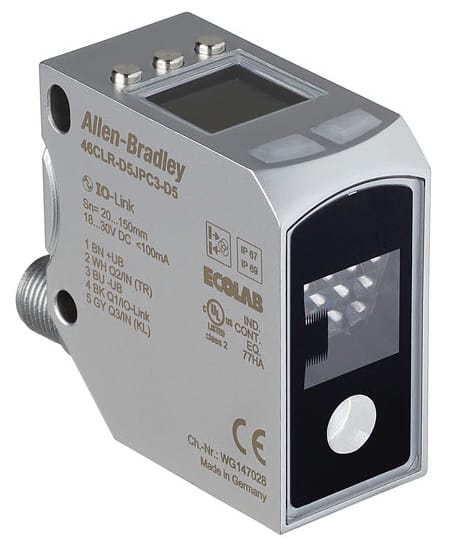

ColorSight True Color Sensor
Produktnummer: 46CLR-D5LAC3-D5
Produktstatus:
inkl. mva.
True Color Sensor, 46CLR, Diffuse, White LED, Long Range, Teachable Light Operate or Dark Operate, Auto PNP or NPN with IO-Link , Push Button Teach, 20… 150 mm Sensing Range, 5-pin Integral M12 QD
Egenskaper for produkt/familie
- Includes three models to address your needs:
- Includes IP67 and IP69 zinc die cast rated enclosures
- Allows access to true RGB color and intensity values using IO-Link
- Includes three discrete outputs with auto PNP/NPN
- Provides built-in distance correction technology that confirms consistent color detection
- Internally stores up to seven colors in color match mode and unlimited colors by using IO-Link when connected to CompactLogix™ controllers
- Offers embedded IO-Link 1.1 Communication protocol
- Features nine adjustable tolerance levels which provides additional flexibility in installation
| Spesifikasjoner | |
|---|---|
| Sensing Type | Diffuse |
| Light Source | White LED |
| Model | Long Range |
| IOLink Enabled | Yes |
| Connection Type | 5-pin M 12 Integral QD |
| Adjustments | Push Button - Selectable PNP or NPN |
| Output Mode | Light and Dark Operate |
| Sensing Range | 20..150 mm |
| Output Type | Auto PNP or NPN |
| Lengde | 14.351 |
| Høyde | 6.985 |
| Livssyklus | Active |
