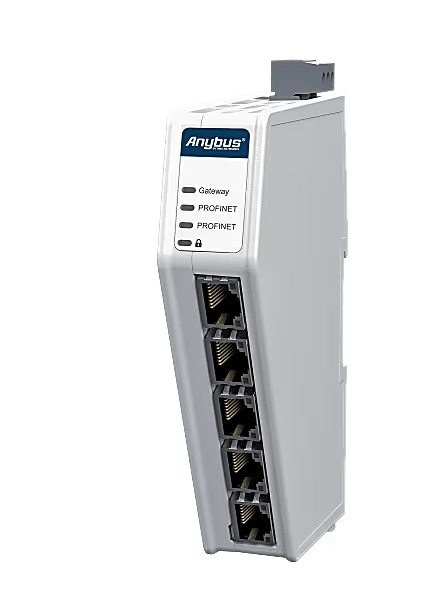

Anybus Communicator ABC4022 enhance network security by segmenting the network. By only forwarding required data to the intended target and blocking unauthorized traffic, Anybus Communicator ABC4022 provide an added layer of security. This makes Anybus Communicator ABC4022 a valuable addition, even when protocol conversion isn’t required.

Features and benefits

High performance
Powered by the award-winning NP40 network processor, it enables instant transfer of up to 1500 bytes (network dependent) between networks, totaling 3000 bytes.

Instant data transfer
Instant data transfer lets you take advantage of high-speed industrial networks.

Intuitive user interface
Use the intuitive web-based user interface to easily configure the Communicator via the drag-and-drop functionality or to analyze live data and generate support packages.

Cybersecurity
Secure boot protects against malware, while a security switch prevents unauthorized changes. The gateway only allows defined PROFINET data between the networks, keeping network traffic isolated.

Optimized hardware design
The Communicator has forward-facing ports and is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.

Diagnostics
The user interface displays real-time connection status and I/O data mapping for easy troubleshooting. Easily generate a support file containing all the necessary information.

5-year warranty
Thanks to carefully selected industrial components the Communicator operates reliably in harsh environments, ensuring uptime and longevity. Our confidence in quality is reflected in a 5-year warranty.

Life cycle management
HMS maintains every part of the Communicator, including network updates, throughout the product’s lifecycle.

Identification & Status

Brand: Anybus
Country of Origin: Sweden
HS Code: 8517620000
Dual Usage (ERP): No
Export Control Classification Number (ECCN) (ERP): 5A991.b.1
Item Number: ABC4022-A
Model Code: 40-ETH-ETH-B
Predecessor: AB7651-F

Certifications & Standards

CE: Yes
UL: Yes
UL Information: E214107: Ord. Loc UL 61010-1, CSA C22.2 No. 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-2-201
KC: Yes
EMC: Yes
FCC: No
Environment: EN 55016-2-3 Class A, EN 55032 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
Waste Certification (WEEE): Yes
Protection Class IP: IP20
Recycle / Disposal: Yes
RoHS Compliant: Yes

Physical Features

Connectors / Input / Output: 2x RJ45; RJ45 Config port
Contains Battery: No
DIP & Rotary Switches: Security lock switch
Push Buttons: Factory reset

General

Net Width (ERP) (mm): 27 mm
Net Height (ERP) (mm): 144 mm
Net Depth (ERP) (mm): 98 mm
Net Weight (ERP) (g): 150 g
Mounting: DIN-rail (EN 50022 standard)
Current Consumption Type Value at Vcc Nom (mA): 90mA @ 24V DC (2.2W)
Current Consumption Max value at Vcc nom (mA): 125mA @24V DC (3W)
Input Voltage (V): 12-30V DC
Power Connector: 3-pin, 5.08 Phoenix plug connector
Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Isolation: Yes
Operating Temperature °C Min: -25 °C
Operating Temperature °C Max: 70 °C
Storage Temperature °C Min: -40 °C
Storage Temperature °C Max: 85 °C
Housing Materials: PC ABS, UL 94 VO
Packaging Material: Cardboard

PROFINET Features

PROFINET Mode: Slave
PROFINET Supported Functionality: RT; Daisy chaining.
PROFINET Bandwidth: 10/100MBit down to 1ms cycle time
PROFINET Input Data Size: 1024 bytes
PROFINET Output Data Size: 1024 bytes
PROFINET Conformance Class: Class B
PROFINET Configuration File: GSDML available
