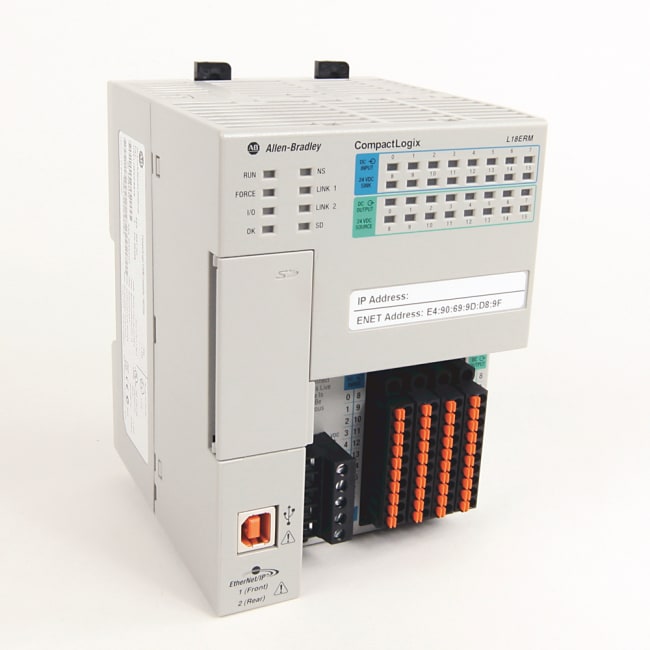

CompactLogix 0.5MB Controller - MOTION

Produktnummer: 1769-L18ERM-BB1B
Produktstatus:


inkl. mva.

CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 512KB Memory, 8 I/O Expansion via 1734 POINT I/O, 8 Ethernet IP Nodes, 2 Axis CIP motion with Kinematics function, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

Class 2 Power Supply, 24 VDC Only, Up to 8 Modules Expanison, POINT BusBackplane, 16 DI (Sink), 16 DO (Source), 2 Ethernet Port (DLR), SupportClass 1, 3 Network Comms, 8 TCP Connections, 0.5MB Internal, 2-Axis CIPMotion, 2 Servo Drives Connections, 1GB SD Card Inbox

Egenskaper for produkt/familie

  • Offer analog, thermocouple, and RTD modules
  • Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
  • Supports up to 2 axes Kinematics for simple articulated robotics
  • Delivers standard, safety and motion control for On-Machine™ applications
  • Provides flexibility with DIN rail or panel mounting options
  • Require SERCOS interface modules for motion
  • Provide individually configurable channels
  • Offers flexible user memory options
  • Include contact output modules
  • Include over-range and under-range detection and indication
  • Support seamless bridging with data control and collection over the same network
  • Does not require a chassis
  • Provides seamless bridging with data control and collection over the same network
  • Provide dual Ethernet ports for both DLR and linear topologies
  • Includes individual point diagnostic status indicators to ease troubleshooting
  • Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
  • Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
  • Integrate with 1769 Compact I/O™ modules
  • Include high speed input modules
  • Offer input filtering
  • Integrates with 1769 Compact I/O™ modules
  • Available with conformal coating
  • Provides up to 16 axes of Integrated Motion over EtherNet/IP
  • Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
  • Include autocalibration of inputs
  • Require a chassis
  • Address reserve, ASCII, Boolean control, and high-speed counter modules available
  • Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
  • Offer user memory options ranging 2 MB to 3 MB
  • Provide optical isolation
  • Offers built-in communication ports for EtherNet/IP or ControlNet networks
  • Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
  • Offer selectable response to a broken input sensor
  • Includes up to a 2-GB secure digital (SD) card for fast program save and restore
  • Includes a built-in RS-232 serial port on every 1769-L3x controller
  • Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
  • Provide integrated serial port
  • Include 8…32 points per module
  • Include on-board scaling
  • Simplify your system architecture with distributed I/O over EtherNet/IP
  • Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
  • Offer a variety of AC and DC voltages
  • Allow control migrations with re-use of existing 1769 I/O
  • Supports integrated safety up to SIL 3, PLe CAT 4
  • Provides integrated safety and integrated motion in a single controller
  • Support SIL 3, PLe integrity (L4xS controllers only)
  • Support single network strategy to EtherNet/IP TCP/CIP connection 96
  • Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
  • Provide high accuracy ratings
  • Offers a smaller form factor for maximized cabinet space
  • Removes the need for lithium batteries with built-in energy storage
  • Include ability to direct output device operation during an abnormal condition
  • Offer direct connection
  • Prevents incorrect positioning of module with software keying
  • Ideal for small, to mid-size applications that require low axis motion and I/O point counts
  • Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
  • Include I/O packet rate of 10,000 pps
Spesifikasjoner
Sub Brand CompactLogix
Type Standard Controller
Special Features Standard
Communication Ethernet , USB
Isolation 50V (continuous), Basic Insulation Type, Tested at 500V AC for 60 s, System to Field
Enclosure None (open-style)
Display Status LEDs
Mounting DIN Rail / Panel mount
Height 131.6mm, 5.18"
Width 100mm, 3.94"
Depth 105mm, 4.13"
Operating Temperature -20...60 °C (-4...140 °F)
Number Of Channels 32
Memory 0.5MB
Local Programming Port USB/Ethernet
Embedded Network Port 2 Ethernet
Non Volatile Memory Option Secure Digital
Input Signal 10-30 VDC
Output Signal 10-30 VDC
Power Supply 24V DC input, non-isolated, Class 4
CompactLogix 5370 L1 Controllers CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 512KB Memory, 8 I/O Expansion via 1734 POINT I/O, 8 Ethernet IP Nodes, 2 Axis CIP motion with Kinematics function, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.
Network Media Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
Opprinnelsesland SG
Tolltariffnummer 85371091
Lengde 19.685
Høyde 11.43
Livssyklus Active
