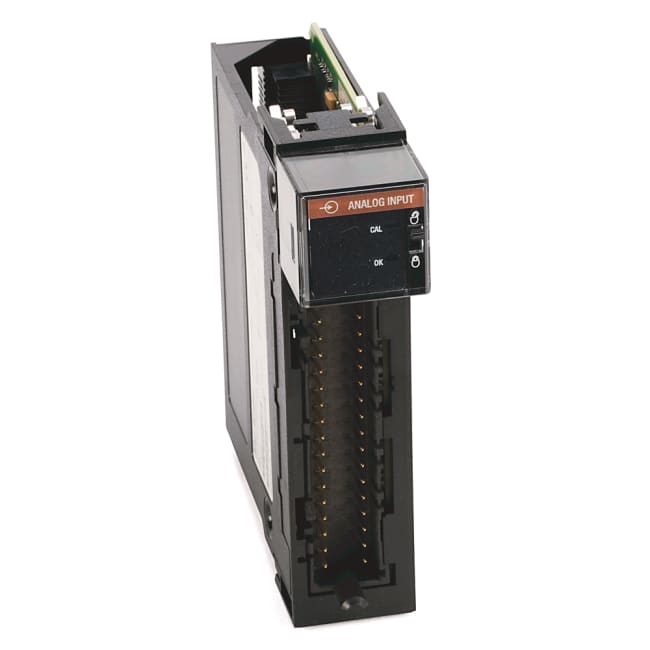

ControlLogix 8 Point A/I Module
Produktnummer: 1756-IF8
Produktstatus:
inkl. mva.
Analog Input - Current/Voltage 8 Pts (36 Pin)
Input Module, ControlLogix, Analog, 8 Point, 8 Single-Ended Inputs, 4 Differential Inputs or 2 Differential High Speed Inputs, Currentand Voltage
| Spesifikasjoner | |
|---|---|
| Product Type | I/O Modules |
| Sub Brand | ControlLogix |
| Type | Analog Input Module |
| Special Features | Standard |
| Mounting | Chassis |
| Enclosure | None (open-style) |
| Input Signal | 0-10.25V, +/- 10.25V, 0-5.125V, 0-20.5mA |
| Isolation | None between channels (Single Ended) |
| Display | Module Health, In Calibration Mode |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Removable Terminal Block | 1756-TBCH or 1756-TBS6H |
| Analog Input Modules (Please select number of Removable terminal Blocks as addded in the list.) | Analog Input - Current/Voltage 8 Pts (36 Pin) |
| Opprinnelsesland | US |
| Tolltariffnummer | 85389099 |
| Lengde | 21.996 |
| Høyde | 5.41 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1756-td002_-en-e.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
2-Dimensional Drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
Selection Guide - (4) Filnavn: it-IT Filtype: application/pdf |
Last ned | |
|
Selection Guide - (1) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Wiring Diagram, Single Ended Voltage (DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Selection Guide - (3) Filnavn: fr-FR Filtype: application/pdf |
Last ned | |
|
Selection Guide Filnavn: de-DE Filtype: application/pdf |
Last ned | |
|
Wiring Diagram, Differential Current (DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Wiring Diagram, Differential Voltage (DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Selection Guide - (5) Filnavn: pt-BR Filtype: application/pdf |
Last ned | |
|
Product Profile Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Selection Guide - (2) Filnavn: es-ES Filtype: application/pdf |
Last ned | |
|
Wiring Diagram, Single Ended Current (DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABIOM190.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABIOM190.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABIOM190.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABIOM190.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned | |
|
ABIOM191.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABIOM191.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABIOM191.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABIOM191.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned |
