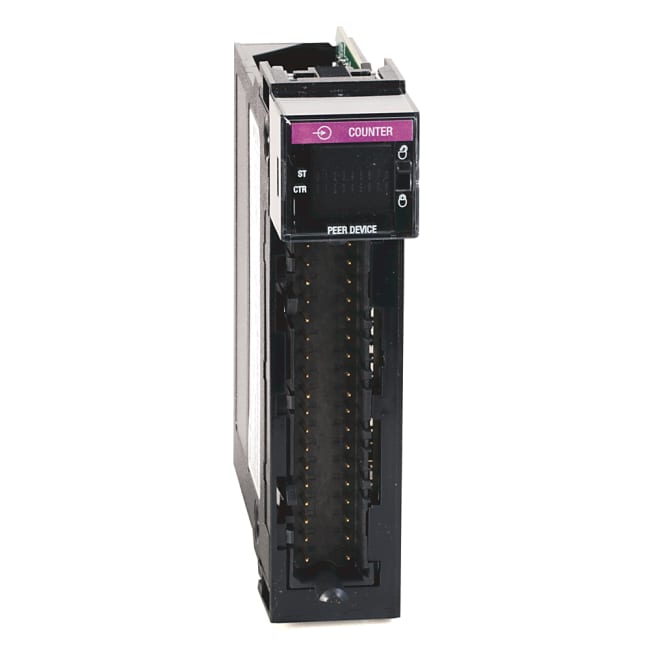

ControlLogix 8 Point Counter Input
Produktnummer: 1756-LSC8XIB8I
Produktstatus:
inkl. mva.
10-30 VDC Counters at 40 KHz, 8 Counters / 8 Isolated Inputs, Peer to Peer Input (36 Pin)
10-30 VDC Counters at 40 KHz, 8 Counters / 8 Isolated Inputs, Peer toPeer Input (36 Pin)
| Spesifikasjoner | |
|---|---|
| Product Type | I/O Modules |
| Sub Brand | ControlLogix |
| Type | Counter Module |
| Special Features | Peer to Peer Control with 1756-OB16IEF, Two Output Windows (Frequency or Accumulated Count Comparisons) per Counter, Instantaneous Frequency and Average Pulse Width Calculations |
| Mounting | Chassis |
| Enclosure | None (open-style) |
| Input Signal | Counters: 10-30vdc up to 40KHz Digital Inputs: 10-30vdc |
| Isolation | 250 V continuous between inputs |
| Display | Input and Communication Status, Module Health |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Removable Terminal Block | 1756-TBCH or 1756-TBS6H |
| Specialty Modules (Please select number of Removable terminal Blocks as addded in the list.) | 10-30 VDC Counters at 40 KHz, 8 Counters / 8 Isolated Inputs, Peer to Peer Input (36 Pin) |
| Opprinnelsesland | US |
| Tolltariffnummer | 85389099 |
| Lengde | 22.098 |
| Høyde | 5.512 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1756-td002_-en-e.pdf Filtype: application/pdf |
