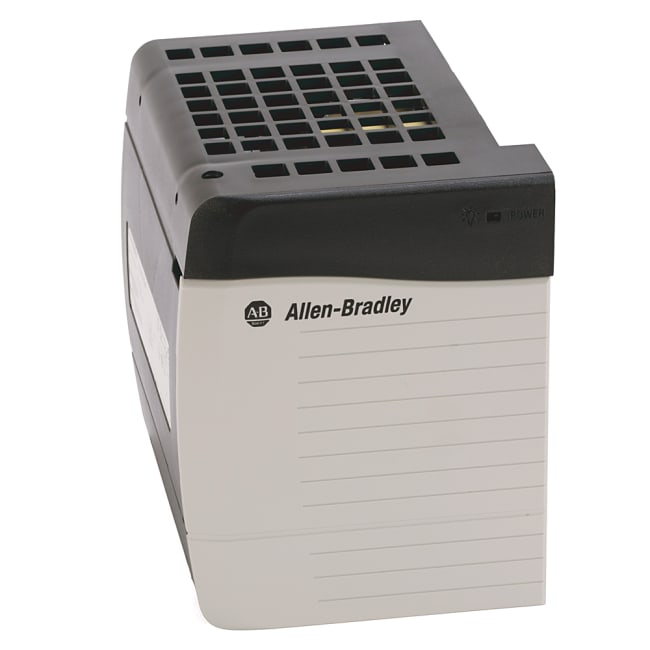

Powersupply ControlLogix, 85-265 VAC (13 Amp @ 5V)
Produktnummer: 1756-PA75
Produktstatus:
inkl. mva.
ControlLogix, 85-265 VAC Power Supply (13 Amp @ 5V)
Power Supply, ControlLogix, AC, 85-265V AC Input, 5V at 13 A Output
| Spesifikasjoner | |
|---|---|
| Product Type | Power Supplies |
| Sub Brand | ControlLogix |
| Type | Power Supply |
| Special Features | Standard |
| Mounting | Chassis |
| Input Voltage | 85...265VAC |
| Enclosure | None ( Open-Style) |
| Display | Status LEDs |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Output Voltage | 5vdc @ 13A, 3.3vdc @ 4A, 1.2vdc @ 1.5A, 24vdc @ 1.75A |
| Wattage | 75W Output Power |
| Frequency Rating | 47...63Hz |
| Connection Cables | None required |
| Chassis Power Supplies (One 1756 chassis supply is required for each 1756 chassis) | ControlLogix, 85-265 VAC Power Supply (13 Amp @ 5V) |
| Opprinnelsesland | MX |
| Tolltariffnummer | 85044082 |
| Lengde | 19.812 |
| Høyde | 17.526 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1756-td005_-en-e.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Installation Instructions Filnavn: fr-FR Filtype: application/pdf |
Last ned | |
|
Dimensional Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Selection Guide - (4) Filnavn: it-IT Filtype: application/pdf |
Last ned | |
|
Selection Guide Filnavn: de-DE Filtype: application/pdf |
Last ned | |
|
Selection Guide - (1) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Installation Instructions - (1) Filnavn: it-IT Filtype: application/pdf |
Last ned | |
|
Product Profile Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Selection Guide - (2) Filnavn: es-ES Filtype: application/pdf |
Last ned | |
|
Selection Guide - (3) Filnavn: fr-FR Filtype: application/pdf |
Last ned | |
|
2-Dimensional Drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
Installation Instructions - (2) Filnavn: pt-BR Filtype: application/pdf |
Last ned | |
|
Selection Guide - (5) Filnavn: pt-BR Filtype: application/pdf |
Last ned | |
|
ABCMA180.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABCMA180.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABCMA180.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABCMA180.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned | |
|
ABCMA181.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABCMA181.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABCMA181.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABCMA181.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned |
