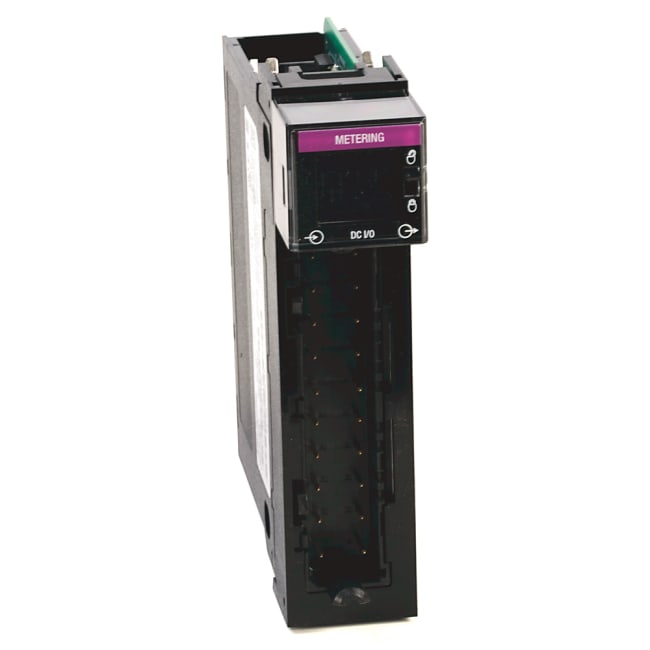

ControlLogix Combination Module

Produktnummer: 1756-CFM
Produktstatus:


inkl. mva.

2 Channel/2 Out Configurable Flowmeter (20Pin)

Flowmeter Module, ControlLogix, 2 Flowmeter Inputs, 2 Current Sourcing DC Outputs, 4-5.5 VDC, 10-31.2 VDC, Configuable, Totalizer modefor metering applications, Integral AGA 7 compensation
Spesifikasjoner
Product Type I/O Modules
Sub Brand ControlLogix
Type Specialty
Special Features Totalizer mode for metering applications, Integral AGA 7 compensation
Mounting Chassis
Enclosure None (open-style)
Input Signal 100KHz Flowmeter Inputs: Magnetic Pickups (50mV - 30vac), TTL Compatible
Output Signal 4-5.5 VDC, 10-31.2 VDC
Isolation 250 V continuous between groups
Display Fault, Input, Output, and Communication Status, Module Health, Input/output devices
Operating Temperature 0...60 °C (32...140 °F)
Removable Terminal Block 1756-TBNH or 1756-TBSH
Specialty Modules (Please select number of Removable terminal Blocks as addded in the list.) 2 Channel/2 Out Configurable Flowmeter (20Pin)
Opprinnelsesland US
Tolltariffnummer 85389099
Lengde 22.0
Høyde 5.0
Livssyklus Active
