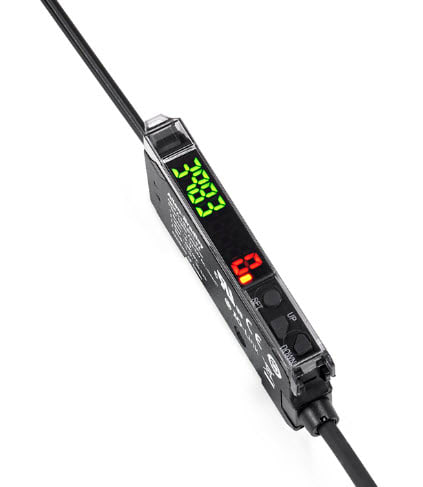

Dual Display Fiber Optic Amplifier

Produktnummer: 46DFA-L2LBT1-A2
Produktstatus:


inkl. mva.

Photoelectric Sensor, 46DFA, Small Aperture Fiber Optic, Visible Red LED, Teachable Light Operate or Dark Operate, PNP and NPN with IO-Link , Push Button Teach, 2 m Cable

Egenskaper for produkt/familie

  • Provides selectable PNP and NPN outputs that use a push button to reduce inventory
  • Offers fast response speeds of 50 μs, 500 μs, 4 ms, and 32 ms
  • Offers embedded IO-Link 1.1 Communication protocol
  • Includes a built-in totalizer feature that simplifies counting applications
  • Includes Teachable LED intensity that adds flexibility for reliable sensing of clear or transparent objects
  • Provides two high-visibility displays for feedback that simplifies setup, operation, and maintainenance
  • Offers cross-talk protection for stable operation of multiple sensors in close proximity
  • Offers an ECO (economy) display mode that reduces amplifier power consumption by 25%
  • Offers fast-response output when connected using IO-Link enables continuous sensor monitoring without impact on performance
  • Provides an IP40 rated enclosure
Spesifikasjoner
Amplifier Aperture Sensor Size 2.2 mm Small Aperture
Connection Types 2m Cable
IO-Link Enabled Yes
Sensing Range Depends on the Fiber Optic Cable
Output Mode Selectable Light or Dark Operate
Output Type Selectable PNP or NPN
Sensitivity Adjustment Push Button
Light Source Visible Red LED
Operating Voltage 12...24V DC
Response Time Selectable Response Time
Lengde 16.256
Høyde 3.048
Livssyklus Active
