Effektbr.3-pol H str.100A Icu=36KA 400V just.term./magn.
Produktnummer: 140G-H2F3-D10
Produktstatus:
inkl. mva.

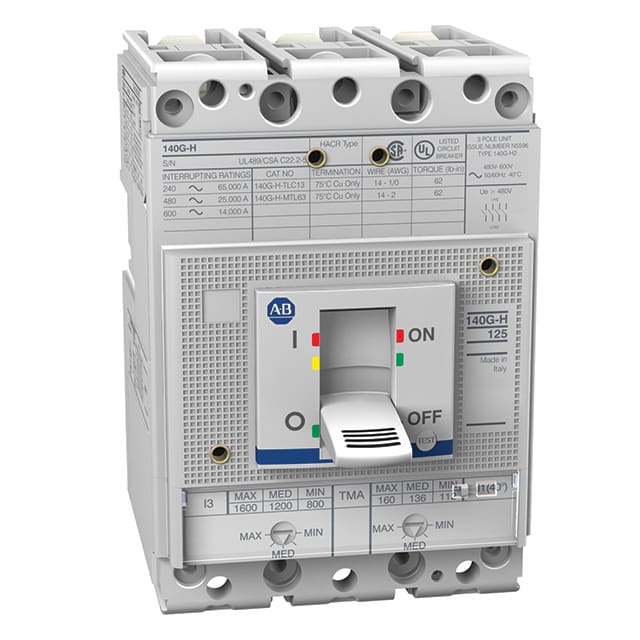

140G - Molded Case Circuit Breaker, H frame, 25 kA, T/M - Thermal Magnetic, 3 Poles, Rated Current 100 A
Molded Case Ckt-BKR, 125A H Frame, 25 kA at 480V, T/M - Adjst Thrm / Adjst Mgntc, 3 Poles, 100A, 80 Percent MCCB, No Bus Bar Mounting, NONE, None, NONE, None
Egenskaper for produkt/familie
- Provides greater customization in trip units
- Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
- Offers a wide range of operating mechanisms to fit a variety of panel configurations
- Offers a wide range of accessories for global availability
| Spesifikasjoner | |
|---|---|
| Bulletin Number | 140G - Molded Case Circuit Breaker |
| Frame/Rating | H Frame (125 A) |
| Interrupting Rating, 50/60 Hz, 240V (kA) | 65 |
| Interrupting Rating, 50/60 Hz, 480V (kA) | 25 |
| Interrupting Rating, 50/60 Hz, 600V (kA) | 14 |
| Breaking Capacity, 50/60 Hz, 220V (kA) | 65 |
| Breaking Capacity, 50/60 Hz, 415V (kA) | 36 |
| Breaking Capacity, 50/60 Hz, 440V (kA) | 36 |
| Breaking Capacity, 50/60 Hz, 690V (kA) | 10 |
| Device Type | 140G - Molded Case Circuit Breaker |
| Number of Poles | 3 Poles |
| Frame Size | H frame |
| Rated Current(A) | 100 A |
| Protection | T/M - Thermal Magnetic |
| Assembly | Factory Assembled |
| Opprinnelsesland | IT |
| Tolltariffnummer | 85362090 |
| Lengde | 13.589 |
| Høyde | 21.717 |
| Livssyklus | Active |
