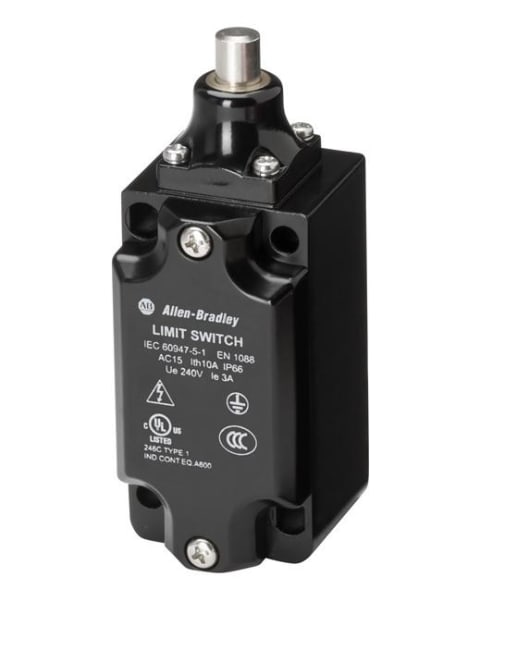

Limit Switch, Non-Safety, Dome Plunger, 1 N.C./1 N.O., Snap Action, 1/2NPT Conduit
Properties for product/family
- Positive operation, forced disconnection of contacts
| Specifications | |
|---|---|
| Contacts (Safety/Auxiliary) | 1 N.C., 1 N.O. |
| Contact Type | Snap Acting |
| Connection Type | 1/2 inch NPT Conduit |
| Body Style | EN50041 (30x60mm), Metal, Black |
| Operator Type | Dome Plunger |
| Lengde | 17.501 |
| Høyde | 4.597 |
| Livssyklus | Active |
| Data sheet | ||
|---|---|---|
|
Spec Sheet File name: limit-td001_-en-p.pdf File type: application/pdf |
Download |
| Downloads | ||
|---|---|---|
|
2D Dimensional Drawing (DWG/DXF) File name: 802K-MDPxxxx.dwg File type: image/vnd.dwg |
Download | |
|
Dimensional Drawing (PDF) File name: 802k%202d.pdf File type: application/pdf |
Download | |
|
Photo File name: 802K_MDPS11E.jpg File type: image/png |
Download |
