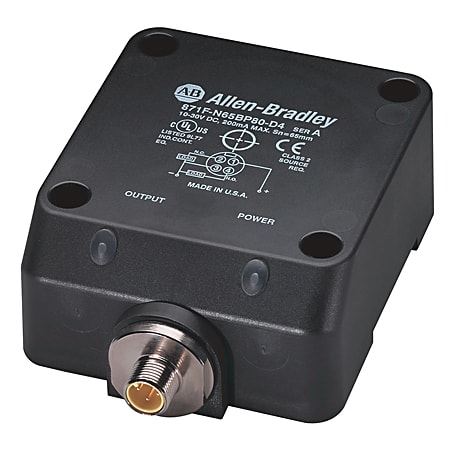

Plastic Flat Pack Washdown Inductive Sensor
Produktnummer: 871F-N65BP80-D4
Produktstatus:
inkl. mva.
Inductive Sensor, Flat Pack Style, None, 83x83 mm Housing, 4 Wire DC Unshielded, 65 mm Sensing Distance, NOC & NCC Sourcing, 4 Wire DC Micro QD
Egenskaper for produkt/familie
- DIN rail mounting option on QD and cable models
- Applications included:
- Rugged aluminum housing
- Short circuit, overload, transient noise, false pulse and reverse polarity protection
- Weld field immune models
- Applications include:
| Spesifikasjoner | |
|---|---|
| Output | N.O. and N.C., Source (PNP) |
| Voltage Rating | 10-30 V DC |
| Proximity Sensor Type | 4-Wire DC Extended Range Complementary Output |
| Head Size | 83mm |
| Nominal Sensing Distance | 65mm |
| Output Configuration | N.O. and N.C., Source (PNP) |
| Connection Type | Micro Quick-Disconnect (DC) |
| Lengde | 12.7 |
| Høyde | 7.595 |
| Livssyklus | Active |
