4G NA Extension board for Ewon Flexy Industrial Internet Rou
inkl. mva.

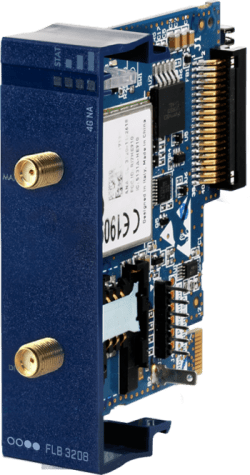

FLB3208-00 Flexy extension card increase the connectivity capability of the Ewon Flexy with a LTE (4G) modem for North America
Many field-based applications do not have access to a wired Internet connection, instead requiring cellular connectivity.
Using a 4G cellular connection provides the advantage of cellular connectivity and can sometimes be the only connectivity in a remote area.

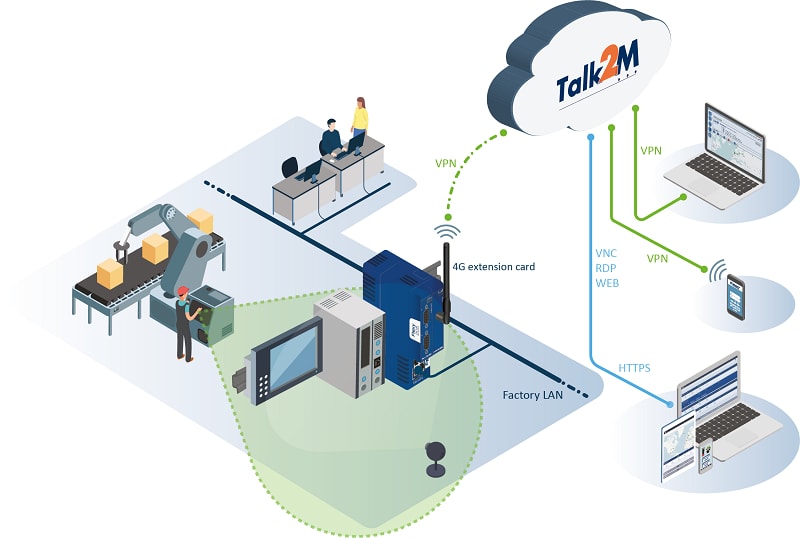

The 4G LTE Flexy extension card addresses these requests while allowing an Ewon Flexy to connect to the Internet. For remote access requirements, a simple SIM card with data plan is all that is needed to connect to the Talk2M cloud-based solution. Similarly for SCADA-like applications, secure remote VPN connectivity can also benefit from this simple SIM card without the burden of provisioning a fixed IP address on the remote site.
It is compatible with the Ewon Flexy 10x series, 20x series and 205.
Use Cases
Technical Characteristics
| Frequencies |
AT&T Networks Compatibility 4G: B71 (600MHz), B12 (700MHz), B13 (700MHz), B14 (700MHz), B5 (850MHz), B4 (1700MHz), B66 (1700MHz), B2 (1900MHz) |
| Antenna Connector | Main: SMA-F Female Diversity: SMA-F Female |
| Antenna | Not included |
| Operating temperature | -25 °C to +60°C |
| Marking | cURus, FCC. |
Certifications
|
FCC/IC |
This product complies with the Part 15 of the FCC rules |
|
Carrier approval |
AT&T Networks Compatibility |
|
Other |
PTCRB |
| Safety |
The product fulfils the requirements of: EN IEC 62368-1:2020 + A11:2020 |
