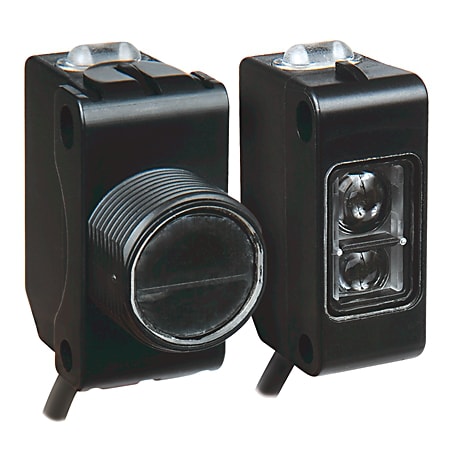

42JS Photoelectric Sensor

Produktnummer: 42JS-R9MPA1-F4
Produktstatus:


inkl. mva.

PHOTOSWITCH Photoelectric Sensor, VisiSight, Transmitted Beam Receiver, DC - 2 Complementary LO/DO Outputs, Source (PNP), 4-pin DC Micro QD on 152mm (6in) pigtail

Sensor, Photoelectric, 42JS, Transmitted Beam Receiver, 10 m Sensing Range, Visible Red LED, Light Operate - Dark Operate Output, PNP, 4Pin Pico M8 Quick Disconnect Connector on Cable, Adjustable Sensitivity

Egenskaper for produkt/familie

  • IP69K and ECOLAB rated enclosure
  • Unique "auto PNP/NPN" output reduces stocking cost and simplifies installation and maintenance
  • Color and contrast detection
  • Incorporates embedded IO-Link communication protocol in select 42JT sensors to help minimize downtime and increase productivity
  • Teach push button for sensitivity and LO/DO selection
  • Clear object detection
  • Linear sensitivity adjustment knob or no adjustment models
  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Visible red LED light source for ease of alignment
  • IP67 rated enclosure
  • Class 1 "Eye Safe" red laser beam
  • 80;889D-F4AC-5
Spesifikasjoner
Sensing Beam None
Sensing Mode Transmitted Beam Receiver
Light Source None
Operating Voltage/Mode DC - 2 Complementary LO/DO Outputs
Output Type Source (PNP)
Sensitivity Adjustment Standard Adjustable
Sensing Range 10 m - Visible Red
Connection Type 4-pin DC Micro QD on 152mm (6in) pigtail
Connection Media DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m
Opprinnelsesland DO
Tolltariffnummer 85414090
Lengde 13.106
Høyde 17.501
Livssyklus Active
