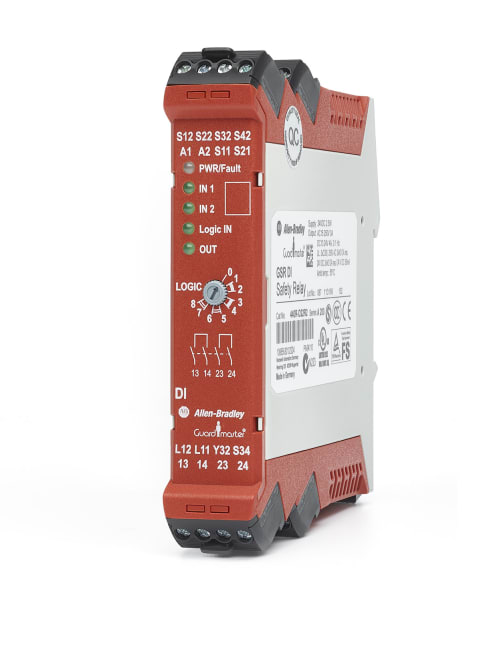

GSR DI Dual Input, relay output 24VDC

Produktnummer: 440R-D22R2
Produktstatus:


inkl. mva.

Guardmaster Dual Input Safety Relay (DI), 2 Dual Channel Universal Inputs, 1 N.C. Solid State Auxiliary Output

Monitoring Safety Relay, Guardmaster, Dual Input (DI), 2 Dual Channel Universal Inputs, 1 N.C. Solid State Auxiliary Output

Egenskaper for produkt/familie

  • Includes the Guardmaster Dual GuardLink safety relay, which provides visibility of system status down to the individual guard doors and e-stops when used with GuardLink-enabled smart safety devices
  • Provides consistent terminal layouts and configuration allow simplified installation
  • Offers compact solution which saves energy and space on DIN rail
  • Provides versatility through simple logic, reset and timing configurations
  • Offers a broad range of safety functions
  • Includes single wire safety relay connection which allows for ease of installation and system flexibility
  • Terminals are grouped together by power inputs and outputs for clear connection
Spesifikasjoner
Inputs 2 Dual Channel Universal Inputs
Single Wire Safe Input 1 SWS Input
Logic Configuration AND / OR Logic Rotary Configured
Immediate Safety Outputs 2 N.O.
Immediate Auxiliary Outputs 1 N.C. Solid State
Delayed Safety Outputs N/A
Single Wire Safe Output 1 SWS Output
Power Supply 24V DC
Removable Terminals Removable
Reset Configured Automatic/Manual or Manual Monitored Reset
Relay Model Selected Guardmaster Dual Input Safety Relay (DI)
Opprinnelsesland DE
Tolltariffnummer 85364190
Lengde 12.294
Høyde 2.997
Livssyklus Active
