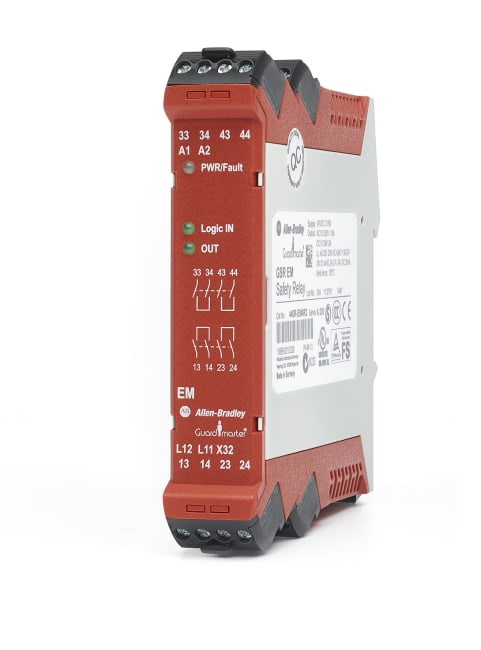

GSR EM Expansion module 24VDC 4NO/ 1NC

Produktnummer: 440R-EM4R2
Produktstatus:


inkl. mva.

Guardmaster Expansion Module Safety Relay (EM), Expansion Module (Single Wire Safe is only input), 1 N.C. Solid State Auxiliary Output

Expansion Module(EM), Guardmaster, Monitoring Safety Relay, Single Wire Safe Only Input, 1 N.C. Solid State Auxiliary Outputs

Egenskaper for produkt/familie

  • Includes the Guardmaster Dual GuardLink safety relay, which provides visibility of system status down to the individual guard doors and e-stops when used with GuardLink-enabled smart safety devices
  • Offers compact solution which saves energy and space on DIN rail
  • Includes single wire safety relay connection which allows for ease of installation and system flexibility
  • Provides consistent terminal layouts and configuration allow simplified installation
  • Terminals are grouped together by power inputs and outputs for clear connection
  • Provides versatility through simple logic, reset and timing configurations
  • Offers a broad range of safety functions
Spesifikasjoner
Inputs Expansion Module (Single Wire Safe is only input)
Single Wire Safe Input 1 SWS Input
Logic Configuration None
Immediate Safety Outputs 4 N.O.
Immediate Auxiliary Outputs 1 N.C. Solid State
Delayed Safety Outputs N/A
Single Wire Safe Output 1 SWS Output
Power Supply 24V DC
Removable Terminals Removable
Reset None / N/A
Relay Model Selected Guardmaster Expansion Module Safety Relay (EM)
Opprinnelsesland DE
Tolltariffnummer 85369095
Lengde 11.913
Høyde 2.997
Livssyklus Active
