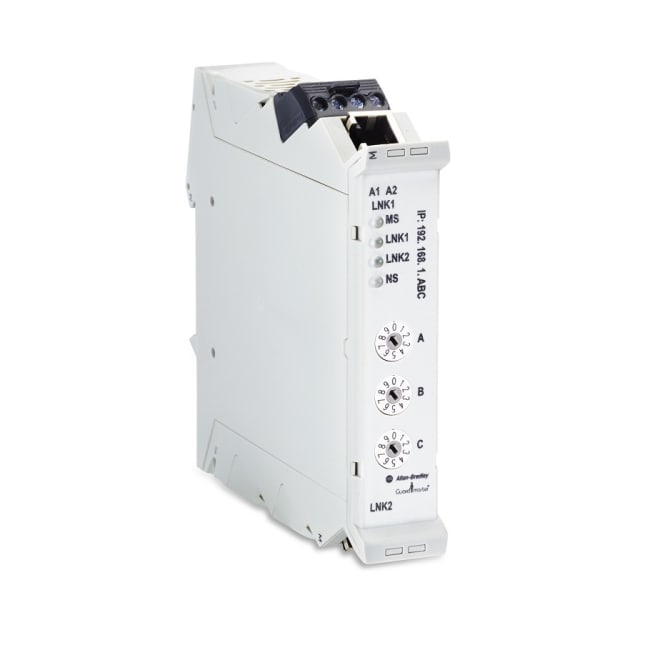

GSR Ethernet/IP interface
Produktnummer: 440R-ENETR
Produktstatus:
inkl. mva.
GSR Ethernet Interface, 2-Port, Twisted Pair, 24.0V DC
Interface, Ethernet, 2-Port, Twisted Pair, 24.0V DC
Egenskaper for produkt/familie
- Terminals are grouped together by power inputs and outputs for clear connection
- Includes single wire safety relay connection which allows for ease of installation and system flexibility
- Offers compact solution which saves energy and space on DIN rail
- Provides consistent terminal layouts and configuration allow simplified installation
- Offers a broad range of safety functions
- Provides versatility through simple logic, reset and timing configurations
- Includes the Guardmaster Dual GuardLink safety relay, which provides visibility of system status down to the individual guard doors and e-stops when used with GuardLink-enabled smart safety devices
| Spesifikasjoner | |
|---|---|
| EtherNet/IP Gateway Module | GSR Ethernet Interface, 2-Port, Twisted Pair, 24.0V DC |
| Inputs | Optical Bus, Infrared light |
| Device Configuration | Logix Designer, AOP |
| GSR Relay capacity | Maximum of Six GSR safety relays |
| Ethernet connection | Two RJ-45 connectors, Category 5 |
| Terminal | Removable, screw type terminal |
| Power Supply | 24V DC |
| Tolltariffnummer | 85176200 |
| Lengde | 11.811 |
| Høyde | 3.048 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440r-in078_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned |
