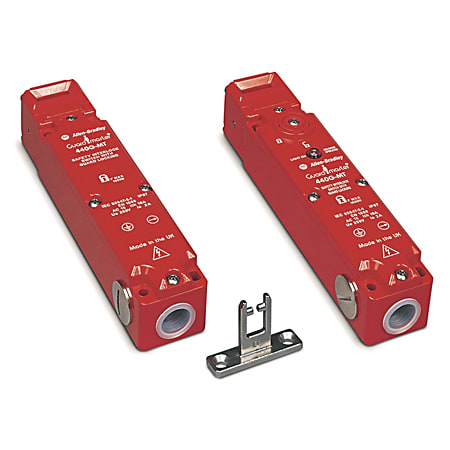

440G-MT Guard Locking Solenoid Switch
Produktnummer: 440G-MT47043
Produktstatus:
inkl. mva.
Guard Locking Switch - 440G-MT Solenoid: Solenoid Voltage: 24V AC/DC, Contacts(Safety and Aux): 3 Normally Closed, 1 Normally Open, Actuator: No Actuator, Conduit Entry: 12-Pin M23
Guardlock Switch, 440G-MT, Power To Release, 24V ACDC, 3 N.C. Safety, 1 N.O Aux, Break Before Make, 3 N.C. Safety Contacts, 1 N.O. Auxillary Contact, No Actuator, Guardlocking Switch, 12 Pin M23 Style QD, Die Cast Alloy (red)
Egenskaper for produkt/familie
- High locking force of 1600 N (360 lb)
- Mechanical lock
- Heavy-duty die-cast alloy housing
- 110;889D-F5NC-5
- 110;889D-F8NB-5
- 110;889M-F12AH-5
| Spesifikasjoner | |
|---|---|
| BBM only | Break Before Make |
| Product Family | 440G-MT Solenoid |
| Model Type | Power to Release |
| Contacts (Safety/Auxiliary) | 3 Normally Closed, 1 Normally Open |
| Solenoid Contacts | None |
| Solenoid Voltage | 24V AC/DC |
| Actuator | No Actuator |
| Conduit Entry / Connection Type | 12-Pin M23 |
| Holding Force (Fzh) | 1500N (337 lbs) |
| Cordsets | M23, Female, Straight, 12-pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 8-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 5-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Lengde | 25.197 |
| Høyde | 6.198 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440g-in001_-en-p.pdf Filtype: application/pdf |
Last ned | |
| Nedlastinger | ||
|---|---|---|
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
