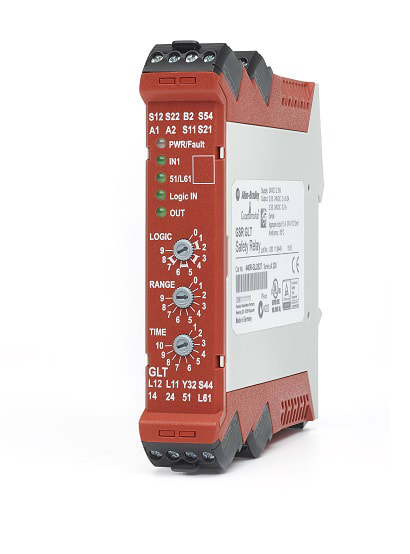

Guardmaster GLT Safety Relay

Produktnummer: 440R-GL2S2T
Produktstatus:


inkl. mva.

Guardmaster Guard Locking safety relay with Time Delay (GLT), 1 Dual Channel Input (time delayed outputs - GLT), 1 N.O., PNP, 50mA, non-safety Auxiliary Output

Safety Relay, GLT, Guardlocking, 2 Outputs, Solid-State, 22.5mm Width, Time Monitoring

Egenskaper for produkt/familie

  • Provides consistent terminal layouts and configuration allow simplified installation
  • Includes the Guardmaster Dual GuardLink safety relay, which provides visibility of system status down to the individual guard doors and e-stops when used with GuardLink-enabled smart safety devices
  • Provides versatility through simple logic, reset and timing configurations
  • Offers a broad range of safety functions
  • Includes single wire safety relay connection which allows for ease of installation and system flexibility
  • Offers compact solution which saves energy and space on DIN rail
  • Terminals are grouped together by power inputs and outputs for clear connection
Spesifikasjoner
Inputs 1 Dual Channel Input (time delayed outputs - GLT)
Single Wire Safe Input 1 SWS Input
Logic Configuration Category 1 Stop, Time Delayed Outputs Rotary Switch Configured
Immediate Safety Outputs 2 OSSDs, 0.5 A
Immediate Auxiliary Outputs 1 N.O., PNP, 50mA, non-safety
Delayed Safety Outputs 2 OSSDs, 300mA
Single Wire Safe Output 1 SWS Output
Power Supply 24V DC
Removable Terminals Removable
Reset Configured Automatic/Manual or Manual Monitored Reset
Relay Model Selected Guardmaster Guard Locking safety relay with Time Delay (GLT)
Lengde 12.065
Høyde 2.858
Livssyklus Active
