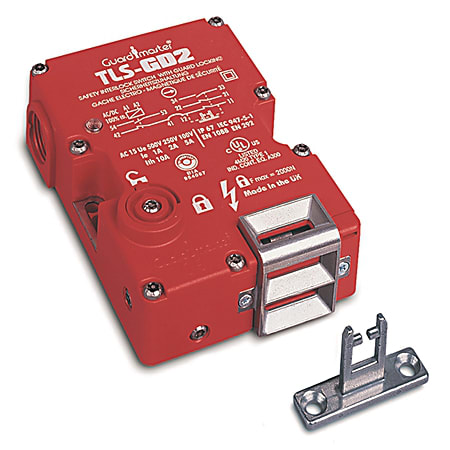

TLS-GD2 Guard Locking Switch
Produktnummer: 440G-T21BGPL-1B
Produktstatus:
inkl. mva.
Guard Locking Switch - 440G TLS-GD2: Solenoid Voltage: 24V AC/DC, Contacts(Safety and Aux): 2 Normally Closed, 1 Normally Open, Actuator: Standard, Conduit Entry: 12-Pin M23
Guardlock Switch, TLS-GD2, Escape Release, 24V ACDC, 1 N.C. 1 N.O., 2 N.C. Safety, 1 N.O Aux, Break Before Make, GD2 Standard, 12 Pin M23 Style QD, Plastic
Egenskaper for produkt/familie
- Power to release or power to lock
- Conforms to EN 1088 & EN 60947-5-1
- IP69K, suitable for high pressure, high temperature washdown
- Rotatable head—4 possible key entry slots
- High locking force 2000 N (450 lb)
- 110;889D-F5NC-5
- 110;889D-F8NB-5
- 110;889M-F12AH-5
| Spesifikasjoner | |
|---|---|
| BBM only | N/A |
| Product Family | 440G TLS-GD2 |
| Model Type | TLS-1 GD2 Power to Release with Escape Release |
| Contacts (Safety/Auxiliary) | 2 Normally Closed, 1 Normally Open |
| Solenoid Contacts | 1 Normally Closed, 1 Normally Open |
| Solenoid Voltage | 24V AC/DC |
| Actuator | Standard |
| Conduit Entry / Connection Type | 12-Pin M23 |
| Holding Force (Fzh) | 2000N (450 lbs) |
| Cordsets | M23, Female, Straight, 12-pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 8-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 5-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Lengde | 23.0 |
| Høyde | 16.0 |
| Livssyklus | Active |
