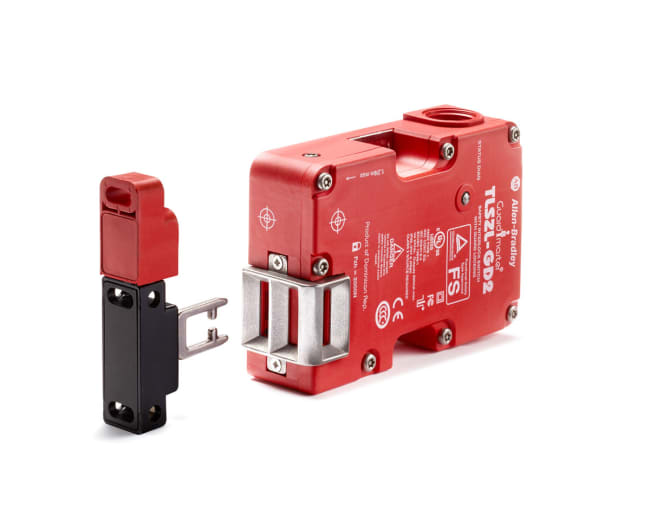

Guardmaster TLS-Z GD2 Guardlock Switch
Produktnummer: 440G-TZS21UTLH
Produktstatus:
inkl. mva.
Guardlock Switch, 440G TLS-Z, Power To Lock, 2 N.C. Safety, 1 N.C. Door Aux, Solid State Contacts, Unique Coded Actuator, 8 Pin DCQD, Plastic
Egenskaper for produkt/familie
- 110;889D-F8AB-5
- 110;889D-F8NB-5
- 110;889D-F5NC-5
| Spesifikasjoner | |
|---|---|
| Product Family | 440G TLS-Z GD2 |
| Model Type | Power to Lock |
| Contacts (Safety/Auxiliary) | 2 x PNP (0.2A max.), 1 x PNP (0.2A max.) - Door proximity |
| Solenoid Contacts | None |
| Solenoid Voltage | 24V AC/DC |
| Actuator | Fully-Flex |
| Conduit Entry / Connection Type | 8-Pin Micro (M12) |
| Holding Force (Fzh) | 2000N (450 lbs) |
| Cordsets | 889 DC Micro cable |
| Cordsets | DC Micro (M12), Female, Straight, 8-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 5-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Lengde | 18.034 |
| Høyde | 5.842 |
| Livssyklus | Active |
