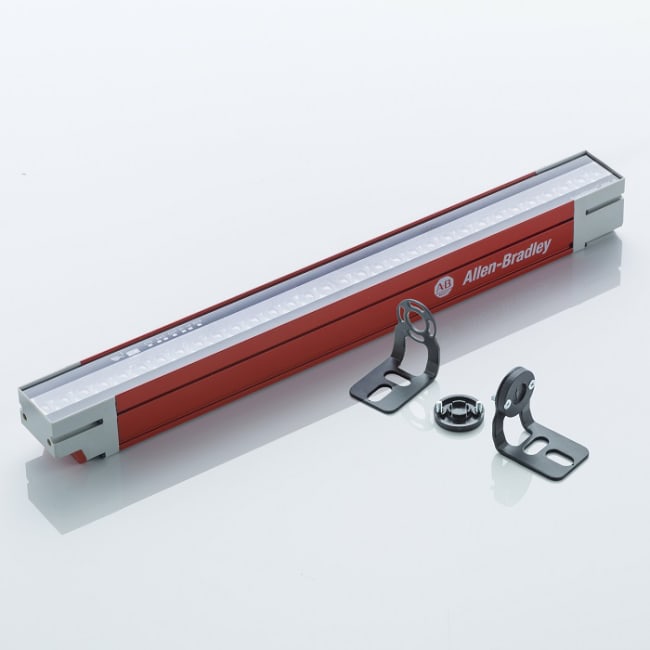

GuardShield 750mm- 14mm Transceiver
Produktnummer: 450L-B4FN0750YD
Produktstatus:
inkl. mva.
450L-B14mm (0.55 in.)750 mm (29.55 in.)
Transceiver, 750mm- 14mm, Product line B, Type4/Cat.4, 14mm Finger resolution, No laser integrated, Protective height: 750 mm, Enclosure rating IP65, GuardShield
Egenskaper for produkt/familie
- Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.)
- Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modules
- Features an active protective field that senses over the entire length of a transceiver
- Includes patented technology that allows each transceiver to be used either as a transmitter or receiver via an innovative plug-in module
| Spesifikasjoner | |
|---|---|
| StickType | 450L-B |
| Quantity of Transceiver Sticks (Select 2 to set up one system,select multiple of 2 for multiple systems,select only 1 for replacement) | 450L-B Standard Safety Light Curtain |
| Resolution | 14mm (0.55 in.) |
| Protected Height | 750 mm (29.55 in.) |
| Lengde | 134.62 |
| Høyde | 7.62 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 450l-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Product Profile - (2) Filnavn: es-ES Filtype: application/pdf |
Last ned | |
|
User Manual Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
Product Profile Filnavn: de-DE Filtype: application/pdf |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
Product Profile - (4) Filnavn: it-IT Filtype: application/pdf |
Last ned | |
|
Product Profile - (5) Filnavn: pt-BR Filtype: application/pdf |
Last ned | |
|
Product Profile - (3) Filnavn: fr-FR Filtype: application/pdf |
Last ned | |
|
Product Profile - (1) Filnavn: en-US Filtype: application/pdf |
Last ned |
