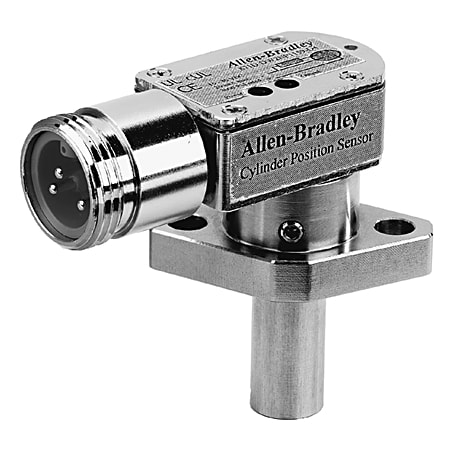

Hydraulic Cylinder Position Sensor
Produktnummer: 871D-BW2N260-R3
Produktstatus:
inkl. mva.
Inductive Sensor, in Port Cylinder Position, WFI, 26 mm Probe Length, AC/DC, 2 mm Sensing Distance, Normally Open, 3 Pin AC Micro QD
Egenskaper for produkt/familie
- 3-wire DC and 2-wire AC/DC versions with either mini- or micro-style connectors
- Applications include:
- Withstands pressures up to 3000 psi
- Low profile housing can be rotated 304° without breaking pressure seal
- Stainless steel probe with ceramic face
- Weld field immune
- Shielded construction
- Short circuit, overload, transient noise, false pulse and reverse polarity protection
| Spesifikasjoner | |
|---|---|
| Output Configuration | N.O. |
| Connection Type | Micro Quick-Disconnect (AC) |
| ProbeLength | 26.0mm, Blue Color Code |
| Proximity Sensor Type | 2-Wire AC/DC |
| Output | N.O. |
| Voltage Rating | 20-250V AC/DC |
| Lengde | 7.6 |
| Høyde | 15.9 |
| Livssyklus | Active |
