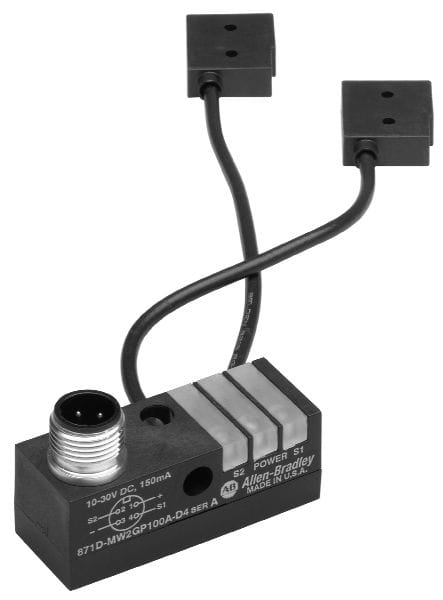

Hydraulic Cylinder Position Sensor
Produktnummer: 871D-MW2GP100A-D4
Produktstatus:
inkl. mva.
Proximity Sensor, 3-Wire DC, 2mm Sensing Distance100mm (3.94 in), Large Chicklet, N.O., Source (PNP) Output, Micro QD (DC)
Inductive Sensor, on Clamp Cylinder Position, WFI, 100 mm Lead Length, Lge Chicklet, DC, 2 mm Sensing Distance, 2 Normally Open PNP Outputs, 4 Pin DC Micro QD
Egenskaper for produkt/familie
- Shielded construction
- Weld field immune
- Short circuit, overload, transient noise, false pulse and reverse polarity protection
- Superior status indicator visibility
- Applications include:
| Spesifikasjoner | |
|---|---|
| Proximity Sensor Type | 3-Wire DC |
| Lead Length | 100mm (3.94 in) |
| Output Configuration | 2 N.O., Source (PNP) Outputs |
| Chicklet Size | Large |
| Connection Type | Micro Quick-Disconnect (DC) |
| Lengde | 24.765 |
| Høyde | 3.556 |
| Livssyklus | Active |
