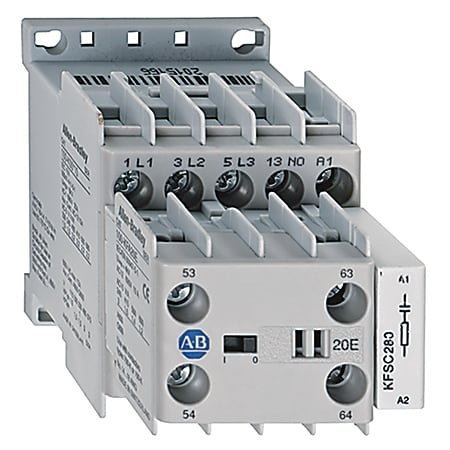

Kontaktor 3-pol 5A.AC3 24VDC m/sl.diode
Produktnummer: 100-K05DJ01
Produktstatus:
inkl. mva.
Miniature Contactor, Screw Type Terminals, 5 A, System Control Voltage: 24 (17...30)V DC Diode, 3 N.O. Main Contacts, 1 N.C. Auxiliary Contact, 1
Miniature Contactor, 5 A, IEC, 24 (17...30)V DC Diode, 3 N.O. Poles, 1 N.C. Auxiliary Contact, Screw Type Terminals, Single Pack: Quantityof 1
Egenskaper for produkt/familie
- Optional integrated surge suppressor
- Same dimensions for AC and DC
- Compatible with Bulletin 193-K bimetallic overload relay
- Mirror contacts per IEC 60947-4-1 and mechanically linked contacts per IEC 60947-5-1 on main unit
- Full-voltage non-reversing and reversing contactors
- IP2X finger protection
- Compact size
| Spesifikasjoner | |
|---|---|
| Connection | Screw Type Terminals |
| Contactor Size | 5 A |
| 3-Phase kW (50 Hz) 230V Rating | 1.5 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 2.2 |
| 3-Phase kW (50 Hz) 500V Rating | 2.2 |
| 3-Phase kW (50 Hz) 690V Rating | 2.2 |
| 1-Phase HP (60 Hz) 115V Rating | 0.5 |
| 3-Phase HP (60 Hz) 200V Rating | 1.5 |
| 3-Phase HP (60 Hz) 230V Rating | 1.5 |
| Coil Voltage | 24 (17...30)V DC Diode |
| Terminal Type | Screw Type Terminals |
| Rated Operating Current | 5 A |
| Control Voltage | 24 (17...30)V DC Diode |
| No. of Poles | 3 Poles |
| Main Contact Configuration | 3 N.O. |
| Auxiliary Contact Configuration | 1 N.C. |
| Package Quantity | 1 |
| Opprinnelsesland | CH |
| Tolltariffnummer | 85364190 |
| Lengde | 5.89 |
| Høyde | 4.8 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 100-td013_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2-Dimensional Drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned |
