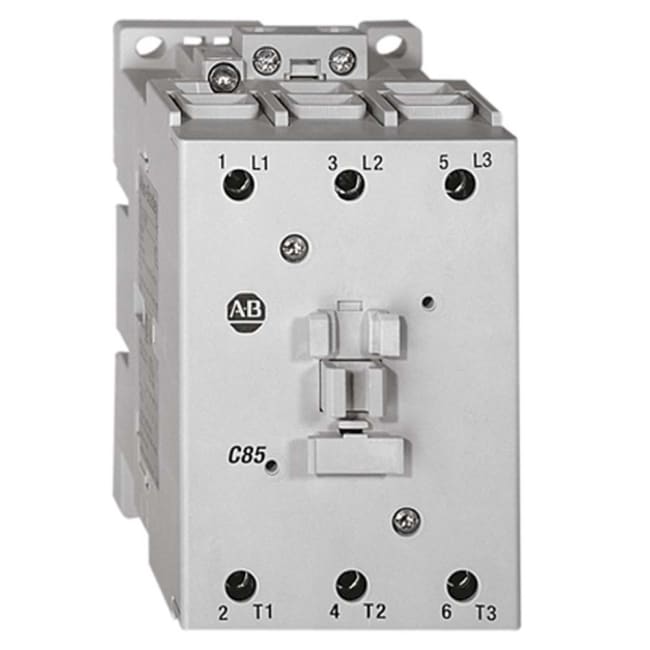

KONTAKTOR 4-POL 85A AC-3. 230V SPOLE

Produktnummer: 100-C90KF400
Produktstatus:


inkl. mva.

100-C IEC Contactor, 230V 50/60Hz, Screw Terminals, Line Side, 85A, 4 N.O. 0 N.C. Main Contact Configuration, Single Pack

Contactor, 90 A, 230V 50/60 Hz, AC, 4 Normally Open Poles, 230V AC 50/60 Hz, No Contact Configuration, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load
Spesifikasjoner
Connection Screw Terminals
3-Phase kW (50 Hz) 230V Rating 25
3-Phase kW (50 Hz) 400V/415V Rating 45
3-Phase kW (50 Hz) 500V Rating 55
3-Phase kW (50 Hz) 690V Rating 45
1-Phase HP (60 Hz) 115V Rating 7.5
1-Phase HP (60 Hz) 230V Rating 15
3-Phase HP (60 Hz) 200V Rating 25
3-Phase HP (60 Hz) 230V Rating 30
3-Phase HP (60 Hz) 460V Rating 60
3-Phase HP (60 Hz) 575V Rating 50
Terminal Type Screw Terminals
Rated Operating Current, AC-3 85A
Coil Voltage 230V 50/60Hz
No. of Poles 4 Poles
Coil Termination Line Side
Contact Configuration 4 N.O. 0 N.C. Main Contact Configuration
Package Quantity 1
Electrical Standards UL
Utilization Category AC-3 Squirrel-cage motor starting and stopping
Actual Life Actual Life Cannot be Calculated (more information)...
100-C or 104-C Contactor None
Front Mounted Auxiliary Contact None
Left Side Auxiliary Contact None
Right Side Auxiliary Contact None
Interlock None
Opprinnelsesland PL
Tolltariffnummer 85364900
Lengde 11.989
Høyde 10.998
Livssyklus Active
