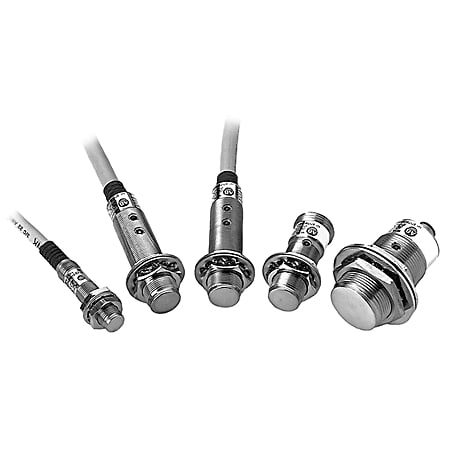

871TM Tubular Stainless Steel Sensors
Produktnummer: 871TM-M10NP18-D4
Produktstatus:
inkl. mva.
Proximity Sensor, 3-Wire DC Extended Range Standard Barrel, 18mm Diameter, Shielded, Tubular:Stainless Steel, Metal Face, 10mm Sensing Distance, N.O., Source (PNP) Output, IO Link Enabled, Micro QD (DC)
Inductive Sensor, Metal Face, 18 mm Barrel Diameter, DC Shielded, 10 mm Sensing Distance, N.O. Sourcing DC IO-Link, Micro Quick Disconnect
Egenskaper for produkt/familie
- 90;889D-F4AC-5
- Incorporates embedded IO-Link communication protocol in select 871TM sensors to help minimize downtime and increase productivity
- Sensing modes available: standard and extended/equal range
- Short circuit, overload, transient noise, false pulse, reverse polarity and radio frequency interference protection
- IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
- 1200 psi washdown
| Spesifikasjoner | |
|---|---|
| Output | N.O., Source (PNP) |
| Cable Length | No Cable |
| Voltage Rating | 10 - 30 V DC |
| Nominal Sensing Distance | 10mm |
| Connection Type | Micro Quick-Disconnect (DC) |
| Shielding | Shielded |
| Connection Type Part Number Position 2 for Proximity Sensors | 4 |
| Proximity Sensor Type | 3-Wire DC Extended Range Standard Barrel |
| IO Link Enabled | Yes |
| Output Configuration | N.O., Source (PNP) |
| Barrel Diameter | 18mm |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Opprinnelsesland | HU |
| Tolltariffnummer | 85365019 |
| Lengde | 19.304 |
| Høyde | 1.651 |
| Livssyklus | Active |
