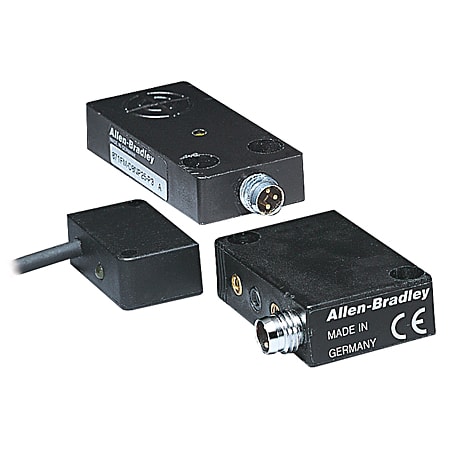

Mini Flat Pack Inductive Sensor
Produktnummer: 871FM-D2NP11-E2
Produktstatus:
inkl. mva.
Inductive Sensor, Miniature Rectangular, 28x16x11 mm Housing Dimensions, DC, 2 mm Sensing Distance, Normally Open Sourcing, 2 M PVC Cable
Egenskaper for produkt/familie
- Offers rugged full stainless steel models that provide Factor-1 equal sensing / weld field immunity for tough applications
- Offers extended range sensing for metal versions allows mounting further away from target which reduces chance of impact and related damage
- Incorporates embedded IO-Link Technology in select sensors to help minimize downtime and increase productivity
| Spesifikasjoner | |
|---|---|
| Output | N.O., Source (PNP) |
| Sensor Size | 28x16x11mm |
| Switching Frequency (Hz) | 600 Hz |
| Barrel Type | Rectangular, Standard |
| IO Link Enabled | No |
| Nominal Sensing Distance | 2mm |
| Output Configuration | N.O., Source (PNP) |
| Connection Type | PVC Cable 2 meter |
| Voltage Type | 10-30 V DC |
| Proximity Sensor Type | 3-Wire DC Plastic Housing |
| Shielding | Shielded |
| Lengde | 16.002 |
| Høyde | 1.702 |
| Livssyklus | Active |
