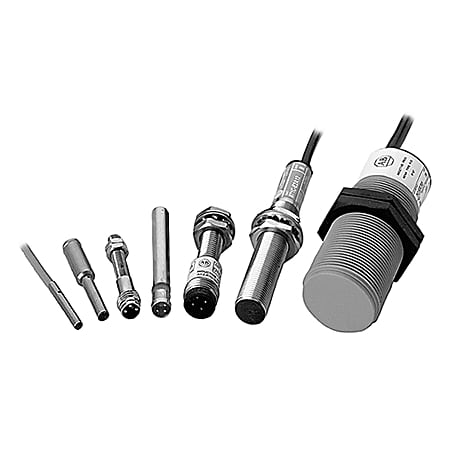

Miniature Small Barrel Inductive Sensor
Produktnummer: 871C-D1NN5-E2
Produktstatus:
inkl. mva.
Inductive Sensor, Miniature Small Barrel, Threaded Barrel, 5 mm BarrelDiameter, DC Standard Range, 1 mm Sensing Distance, 10..30V DC, NormallyOpen Sinking, 2 M PVC Cable
Egenskaper for produkt/familie
- Normally open
- IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
- 10…30V DC
- False pulse, transient noise, reverse polarity and short circuit protections
- Incorporates embedded IO-Link communication protocol in select 871C sensors to help minimize downtime and increase productivity
- 3-wire operation
| Spesifikasjoner | |
|---|---|
| Switching Frequency | 5000 [Hz] |
| Shielding | Shielded |
| Barrel Diameter | 5mm |
| Output Configuration | N.O., Sink (NPN) |
| Connection Type | PVC Cable 2 meter |
| IO Link Enabled | No |
| Proximity Sensor Type | 3-Wire DC, Small Diameter |
| Barrel Type | Threaded |
| Nominal Sensing Distance | 0.8mm |
| Connection | PVC Cable |
| Special Features | Threaded |
| Sensing Distance | 1mm |
| Output | N.O., Sink (NPN) |
| Type | 3-Wire DC, Small Diameter |
| Lengde | 17.526 |
| Høyde | 1.143 |
| Livssyklus | Active |
