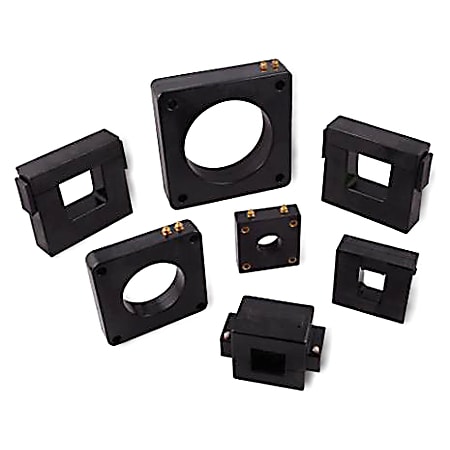

Bulletin 1411 - Current Tranformer, Rectangular, Solid Core, Window - 6.31 diameter, 4000:5 Ratio
Egenskaper for produkt/familie
- Includes low voltage (600V AC)
- Includes metering grade
- Offers a variety of types including round, rectangular, and split-core
| Spesifikasjoner | |
|---|---|
| Type | 6.31" Inner Diameter, Square Outer Shape |
| Core Type | Single Piece Current Transformer (solid-core) |
| Module Designation | 6.31" Inner Diameter, Square Outer Shape |
| Ratio Designation | 4000 Amp Primary to 5A Secondary Ratio |
| Lengde | 25.001 |
| Høyde | 7.0 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1411-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Powermonitor Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
Dimension Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
3D STEP (STP) Model Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned |
