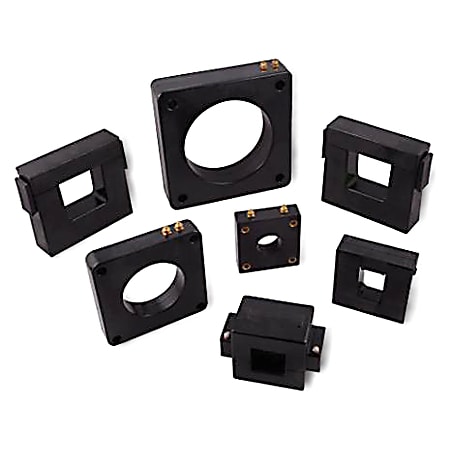

Bulletin 1411 - Current Tranformer, Rectangular, Solid Core, Window - 8.25 diameter, 600:5 Ratio
Egenskaper for produkt/familie
- Includes low voltage (600V AC)
- Offers a variety of types including round, rectangular, and split-core
- Includes metering grade
| Spesifikasjoner | |
|---|---|
| Type | 8.25" Inner Diameter, Square Outer Shape |
| Core Type | Single Piece Current Transformer (solid-core) |
| Module Designation | 8.25" Inner Diameter, Square Outer Shape |
| Ratio Designation | 600 Amp Primary to 5A Secondary Ratio |
| Lengde | 30.201 |
| Høyde | 6.096 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1411-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
3D STEP (STP) Model Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
Powermonitor Photo Filnavn: en-US Filtype: image/png |
Last ned |
