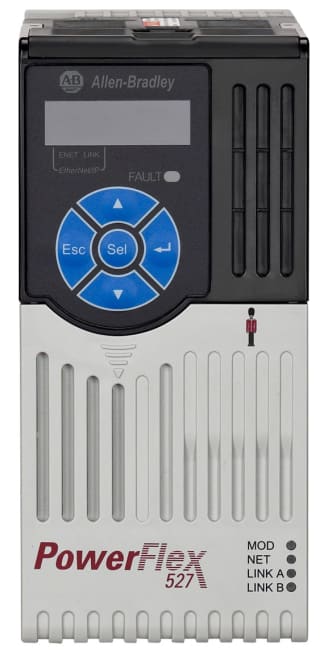

PF 527 AC Drive, 240 VAC, 1 Phase, 0.4 kW , Frame A
inkl. mva.
PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
Egenskaper for produkt/familie
- Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3
- Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine
- Provides the ability to transfer drive configuration files to a new machine
- Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors
- Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP
- Offers built-in dual-port EtherNet/IP™ to support a variety of topologies as well as Device Level Ring functionality
Spesifikasjoner | |
---|---|
Sub Brand | PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety |
Bulletin Number | PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety |
Voltage Class | 240 VAC, 1 Phase |
Output Current | 2.5 Amps |
Enclosure Type | IP20 NEMA / Open Type |
Frame Size | Frame A |
Interface Module | Standard |
EMC Filtering Options | No Filter |
Input | Single Phase 200-240V |
Opprinnelsesland | TW |
Tolltariffnummer | 85044090 |
Lengde | 56.896 |
Høyde | 25.146 |
Livssyklus | Active |
