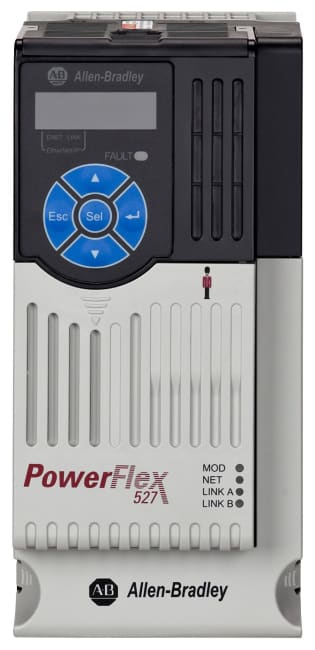

PF 527 AC Drive, 240 VAC, 3 Phase, 4 kW, Frame B

Produktnummer: 25C-B017N104
Produktstatus:


inkl. mva.

PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter

PowerFlex 527 AC Drive, 4 kW (5 Hp), 200-240V AC Input, 50 Hz/60 Hz, Three-Phase, 17Amp, B Frame, Panel Mounting, IP20/NEMA OpenType, with 7th IGBT Brake

Egenskaper for produkt/familie

  • Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP
  • Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine
  • Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3
  • Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors
  • Offers built-in dual-port EtherNet/IP™ to support a variety of topologies as well as Device Level Ring functionality
  • Provides the ability to transfer drive configuration files to a new machine
Spesifikasjoner
Sub Brand PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety
Bulletin Number PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety
Voltage Class 240 VAC, 3 Phase
Output Current 17.5 Amps
Enclosure Type IP20 NEMA / Open Type
Frame Size Frame B
Interface Module Standard
EMC Filtering Options No Filter
Input Three Phase 200-240V
Opprinnelsesland TW
Tolltariffnummer 85044084
Lengde 13.716
Høyde 23.114
Livssyklus Active
