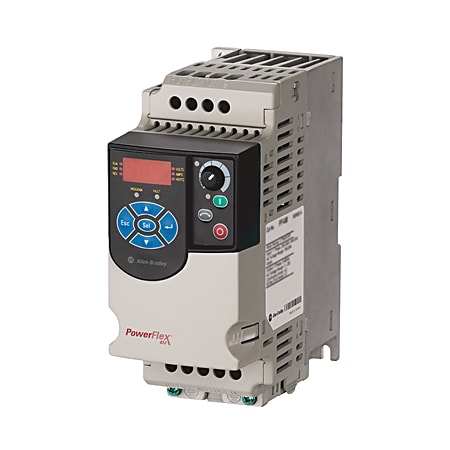

PF4M 0.37KW-2.5A.240V.1-FASE U/EMC
Produktnummer: 22F-A2P5N103
Produktstatus:
inkl. mva.
PowerFlex4M AC Drive, 240VAC, 1PH, 2.5 Amps, 0.37 kW, 0.5 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
AC Drive, 0.4 kW (0.5 HP), 240V AC Input, 1 PH, 50-60 Hz, 2.5 A Output, IP20, UL-NEMA Type Open, Panel Mounting, Omit Brake IGBT, FrameA, 0.98 PF, Integral Keypad With Potentiometer And Led Display, RS485, Fixed Terminal Block Connections.
Egenskaper for produkt/familie
- Integral RS-485 communications
- Feed-through wiring
- Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
- Power ratings:
- Drive overload protection and ramp regulation
- Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
- Configuration and programming via integral LCD keypad, remote keypad, or software
- DIN rail mounting feature on A and B frame drives
- IP20, NEMA/UL open type enclosures V/Hz control, slip compensation
- Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
| Spesifikasjoner | |
|---|---|
| Voltage Rating | 240VAC, 1PH |
| Input Voltage | 240VAC, 1PH |
| Output Current | 2.5 Amps |
| Enclosure Style | IP20 (Open) |
| Frame Size | Frame Size A |
| Human Interface Module (Type) | LED Display, Fixed Digital Keypad |
| EMC Filtering Options | No CE Compliant Filter |
| Internal Communication Module | No Brake Drive |
| Opprinnelsesland | CN |
| Tolltariffnummer | 85044090 |
| Lengde | 19.0 |
| Høyde | 23.2 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 22f-td001_-en-p.pdf Filtype: application/pdf |
