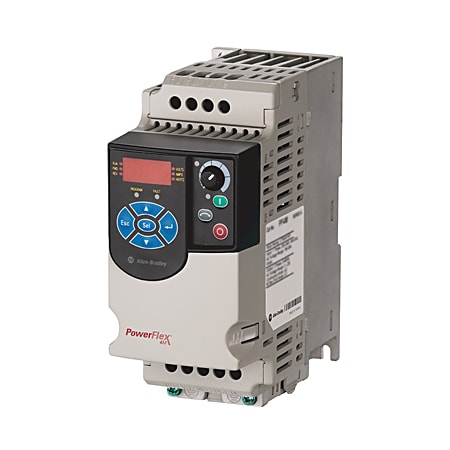

PF4M 0.75KW-4.2A.240V.1-FASE U/EMC
Produktnummer: 22F-A4P2N103
Produktstatus:
inkl. mva.
PowerFlex4M AC Drive, 240VAC, 1PH, 4.2 Amps, 0.75 kW, 1 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
AC Drive, 0.75 kW (1 HP), 240V AC Input, 1 PH, 50-60 Hz, 4.2 A Output, IP20, UL-NEMA Type Open, Panel Mounting, Omit Brake IGBT, FrameA, 0.98 PF, Integral Keypad With Potentiometer And Led Display, RS485, Fixed Terminal Block Connections.
Egenskaper for produkt/familie
- Power ratings:
- IP20, NEMA/UL open type enclosures V/Hz control, slip compensation
- Integral RS-485 communications
- Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
- Configuration and programming via integral LCD keypad, remote keypad, or software
- Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
- DIN rail mounting feature on A and B frame drives
- Drive overload protection and ramp regulation
- Feed-through wiring
- Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
| Spesifikasjoner | |
|---|---|
| Voltage Rating | 240VAC, 1PH |
| Input Voltage | 240VAC, 1PH |
| Output Current | 4.2 Amps |
| Enclosure Style | IP20 (Open) |
| Frame Size | Frame Size A |
| Human Interface Module (Type) | LED Display, Fixed Digital Keypad |
| EMC Filtering Options | No CE Compliant Filter |
| Internal Communication Module | No Brake Drive |
| Opprinnelsesland | CN |
| Tolltariffnummer | 85044090 |
| Lengde | 14.1 |
| Høyde | 19.2 |
| Livssyklus | Active |
