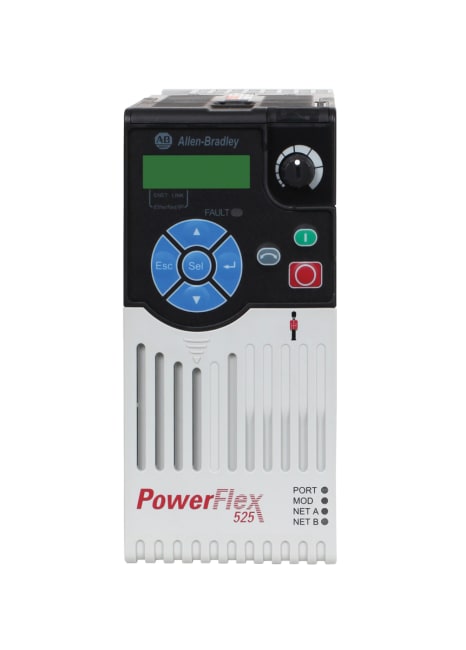

PF525 AC Drive 0,75KW 240VAC 1-FASE Fr.A

Produktnummer: 25B-A4P8N104
Produktstatus:


inkl. mva.

PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter

AC Drive, 0.75 kW (1 HP), 240V AC Input, 1 PH, 50-60 Hz, 4.8 A Output, IP20, UL-NEMA Type Open, Panel Mounting, WithBrakeIGBT, V, Hz, Sensorless Vector, Closed Loop Vector, Perm magnet motor Control, Safe Torque, Off PID, SIL2 Cat 3, Frame A, 0.98PF, IntegralKeypad Wit

Egenskaper for produkt/familie

  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
  • Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
  • Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit
  • Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
  • Features Safe Torque-off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
Spesifikasjoner
Sub Brand PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
Bulletin Number PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
Voltage Class 240 VAC, 1 Phase
Output Current 4.8 Amps
Enclosure Type IP20 NEMA / Open Type
Frame Size Frame A
Interface Module Standard
EMC Filtering Options No Filter
Input Single Phase 200-240V
Opprinnelsesland CN
Tolltariffnummer 85044090
Lengde 24.206
Høyde 22.809
Livssyklus Active
