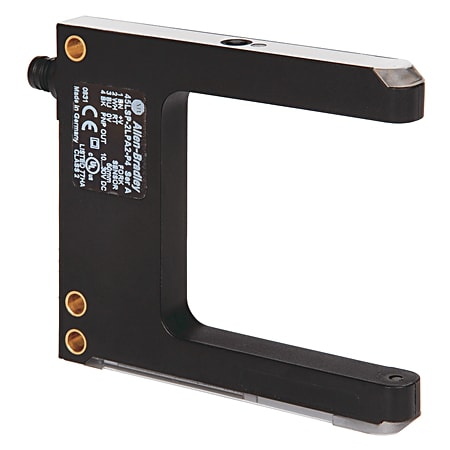

Sensor, Photoelectric, 45LSP, Fork Style, Plastic, Visible Red LED, Light Operate - Dark Operate Selectable Output, PNP Output, 80 mmGap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity
Egenskaper for produkt/familie
- Light or dark operate selectable
- Detects objects as small as 0.2 mm (0.008 in.)
- Easy installation with no alignment required
- Output status indicators on both sides of the fork
- Applications include:
- Power and output status indicators
- 70;889P-F3AB-5
| Spesifikasjoner | |
|---|---|
| Connection | 3-pin Pico QD |
| Output | PNP Output Type |
| Sensing Gap | 80 mm |
| Resolution | 0.2 mm (0.008 in) |
| Operating Voltage | 10...30V DC |
| Output Mode | Light or Dark Operate Selectable |
| Connection Type | 3-pin Pico QD |
| Output Type | PNP Output Type |
| Connection Media | DC Pico(M8), Female, Straight, 3-pin PVC, Yellow, Unshielded, 5 m |
| Lengde | 8.992 |
| Høyde | 3.099 |
| Livssyklus | Active |
