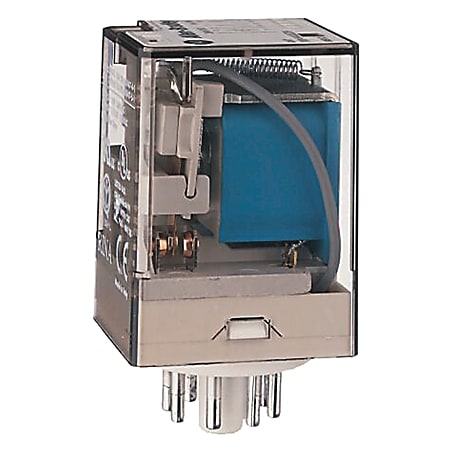

Plug-In Relays 11pin 240V-50/60Hz
Produktnummer: 700-HA33A2-3
Produktstatus:
inkl. mva.
GP Tube Base Relay, 10 Amp standard Contact, 10 Amp Standard Contact, 240V 50/60Hz, 3 Changeover Contacts (Three P, Psh-To-Test & Mnl Ovrrd funct.
Egenskaper for produkt/familie
- Includes tube base/Octal (8- or 11-pin) terminals
- Offers standard ON/OFF flag indicator
- Includes 10 A, B300 contact rating
- Offers electrical schematic on faceplate, clear cover for visual inspection, snap-in marker ability
- Includes DPDT or 3PDT
| Spesifikasjoner | |
|---|---|
| Contact Rating | 10 Amp Standard Contact |
| Contact Configuration | 3PDT Contact Arrangement |
| Coil Voltage | 240V 50/60Hz |
| Relay Option | Push-To-Test & Manual Override function |
| Lengde | 3.505 |
| Høyde | 7.01 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 700-td552_-en-p.pdf Filtype: application/pdf |
