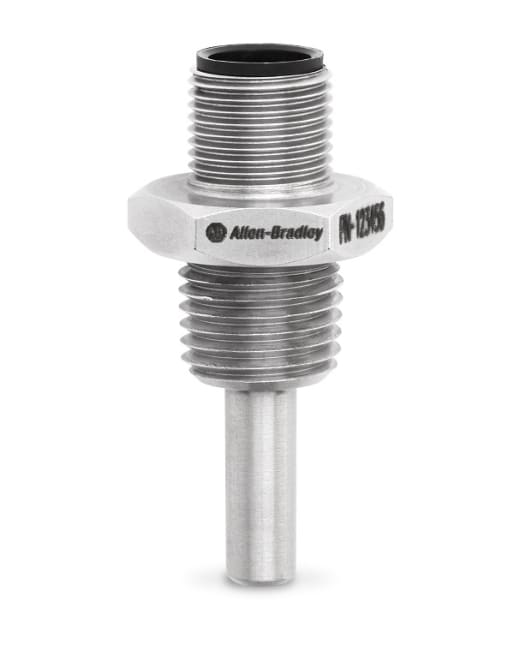

837RTD Resistance Thermometer PT100
Produktnummer: 837RTD-N1G14A22P2-D4
Produktstatus:
inkl. mva.
Resistance Thermometer Sensor, Standard, Non-Display, -22…+266 F (-30…+130 C), G 1/4 BSPP Male, 22 mm, Pt100, 4 Pin DC Micro (M12)
Egenskaper for produkt/familie
- Provides an IP67 rated enclosure
| Spesifikasjoner | |
|---|---|
| Product Family | 837RTD Resistance Thermometer |
| Sensor Model Type | Standard |
| Temperature Sensor Type | Non-Display |
| Temperature Measuring Range | -22 ..+266 F / -30 .. +130 C (without neck tube) |
| Process Connection | G 1/4 BSPP Male |
| Temperature Probe Length | 22 mm |
| Output Type | Pt100 [Ohm] |
| Connection Types | 4-Pin DC Micro(M12) Integral QD |
| Lengde | 15.875 |
| Høyde | 1.905 |
| Livssyklus | Active |
