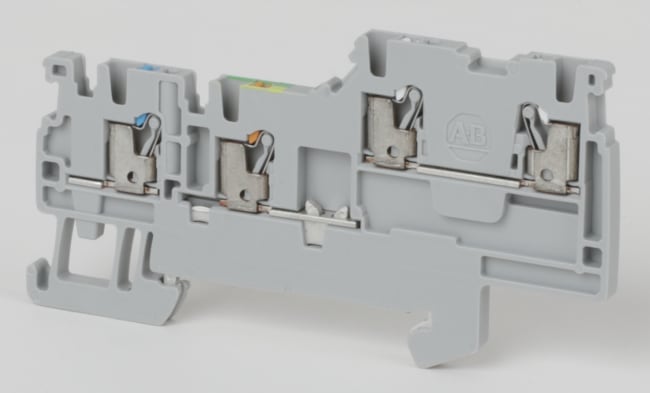

Sensor-/Signalkl. dytt-inn 1,5mm2 3-krets/jord
Produktnummer: 1492-PSG2-3
Produktstatus:
inkl. mva.
Terminal Block, Push-in connection, IEC, Application Specific, Sensor Block, 2 connections plus ground, 1.5mm, Grey, Package Qty 100
| Spesifikasjoner | |
|---|---|
| Wire Range (Rated Cross Section) | 1.5 mm² ( AWG 26 - AWG 14) |
| UL/CSA Voltage Rating | 150V AC/DC |
| UL/CSA Current Rating | 13 A |
| Width | 3.5 mm |
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| Color | Grey |
| Block Type | Sensor Block & Grounding Block |
| Circuit per Block | Three-Circuits |
| Connection Points | 4 Points - 2 White, 1 Green/Yellow, 1 Blue |
| Number of Levels | Multi-Level |
| Wiring Diagram | 1492-PSG2-3 |
| Lengde | 10.795 |
| Høyde | 0.051 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1492-td017_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Technical Details Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Installation Instructions Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
Wiring Diagram Filnavn: en-US Filtype: image/png |
Last ned |
