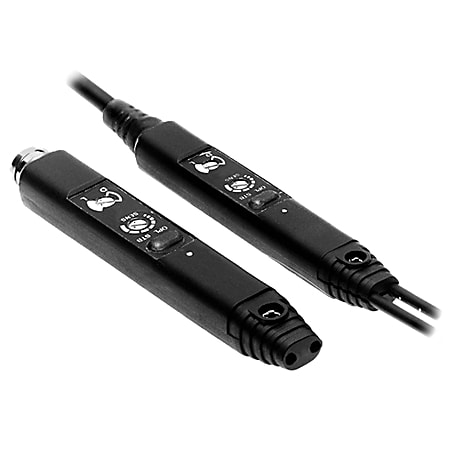

Fiber Optic Sensor, Side Through Hole, Fiber Optic Small Aperture, Visible Red, Manually Adjustable, PNP Source, DC - LO or DO Selectable, FA Slim Fiber Optic, 3 Pin Pico M8 Quick Disconnect
Egenskaper for produkt/familie
- Reverse polarity, false pulse and transient noise protection
- NEMA 13 and IP65
- Fast 500-microsecond response time
| Spesifikasjoner | |
|---|---|
| Fiber Optic Cable | No Fiber Cable Selected |
| Sensing Beam | Visible Red |
| Voltage Rating | 12-24V DC - LO or DO selectable |
| Output | Source (PNP) |
| Connection | 3-pin Pico QD |
| Sensing Mode | Visible Red Plastic Fiber Optic |
| Sensitivity Adjustment | Yes |
| Connection Type | 3-pin Pico QD |
| Output Type | Source (PNP) |
| Operating Voltage/Mode | 12-24V DC - LO or DO selectable |
| Light Source | Visible Red LED |
| Lengde | 11.6 |
| Høyde | 5.601 |
| Livssyklus | Active |
