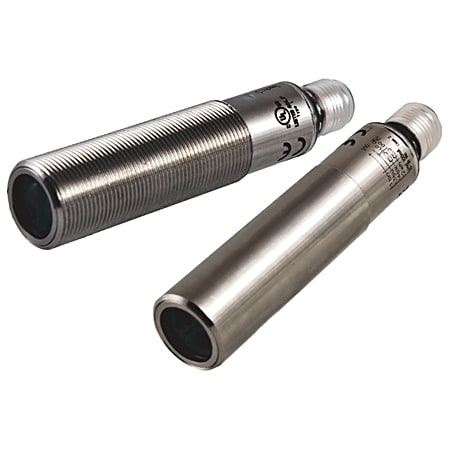

Stainless Steel Cylindrical Sensor
Produktnummer: 42CSS-D1MPA2-D4
Produktstatus:
inkl. mva.
Photoelectric Sensor, Cylindrical Style, Diffuse, 400-400 mm Sensing Range, Infrared LED, Light Operate - Dark Operate Output, PNPOutput, Smooth Barrel, 18 mm Barrel, 4 Pin Micro M12 Integral Quick Disconnect Connector, Adjustable Sensitivity, 42CS
Egenskaper for produkt/familie
- 316L stainless steel housing
- Extended temperature operating range
- Ferromagnetic teach
- Improved detection of shiny objects
- Background suppression models
- Smooth barrel design
- 80;889DS-F4AC-2
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Infrared LED |
| Connection | 4-pin DC Micro QD |
| Barrel Design | Smooth |
| Sensing Mode | Standard Diffuse |
| Maximum Sensing Distance | 400mm (15.6in) |
| Light Source | Infrared LED |
| Output Type | Source (PNP) |
| Sensitivity Adjustment | Ferromagnetic Teach |
| Connection Type | 4-pin DC Micro QD |
| Connection Media | DC Micro(M12), Female, Straight, Stainless Steel, 4-pin PVC, Yellow, Unshielded, 2 m |
| Lengde | 15.011 |
| Høyde | 2.007 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cs-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (3D STEP format) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
Dimension Drawing (DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned |
